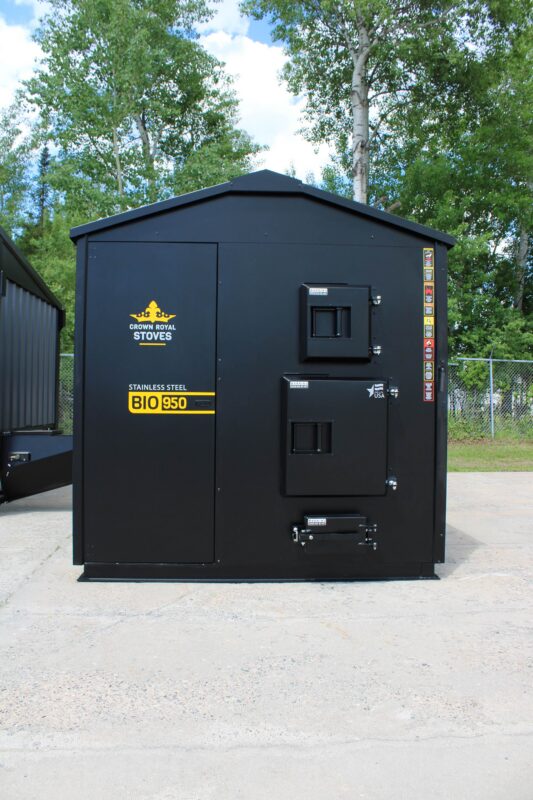

Estimated Weight | 4,400 LBS |
Size (W x L x H) | 83″ x 111″ x 99″ |
Slab Dimensions | 12′ x 30′ |
Chimney Size | 8″ |

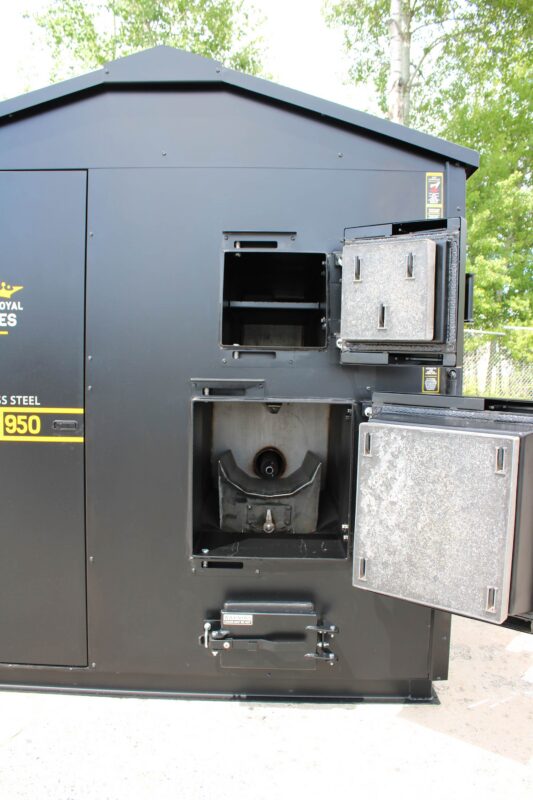

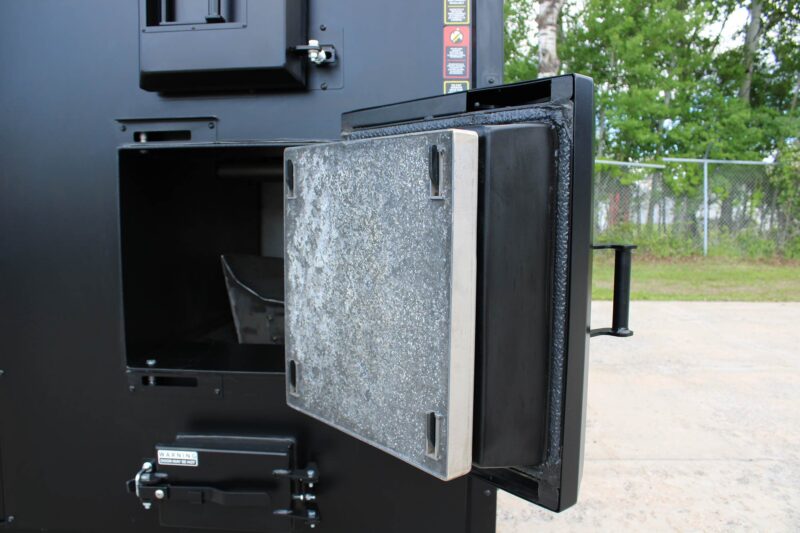

Firebox Door Size (L x H) | 22″ x 22 “ |
Supply/Return Size | 2 – 2″ | 1 – 1 1/4″ | 1 – 3/4″ |
Capacity | 400 gal (water) |
Supply Size: | 1 – 1 1/4″ |
Lower Primary Combustion | 150 cfm |
Over Fire Combustion Blower | 150 cfm |
Forced Draft Fan | 300 cfm |
Approximate Sq Ft | 20,000 – 32,000 |
Approximate BTU’S: | 950,000 |
Insulation Roof/Walls: | R49/R30 |
409 Stainless Steel: | YES |

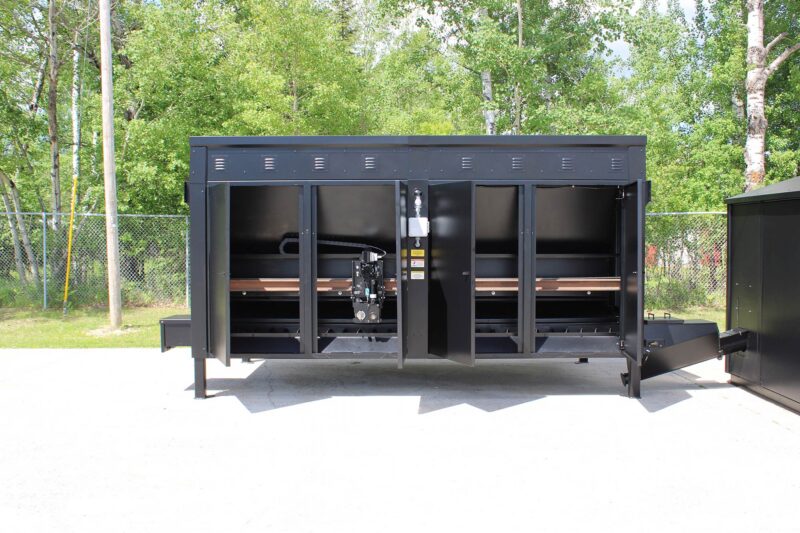

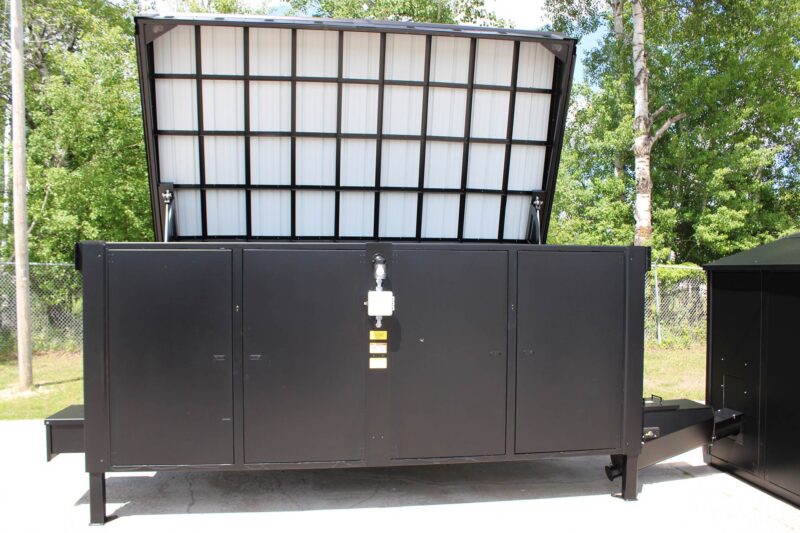

Estimated Weight | 5,900 LBS |
Size (W x L x H) | 97″ x 173″ x 100″ |
Slab Dimensions | – |
Chimney Size | – |
Firebox Door Size (L x H) | – |
Supply/Return Size | – |

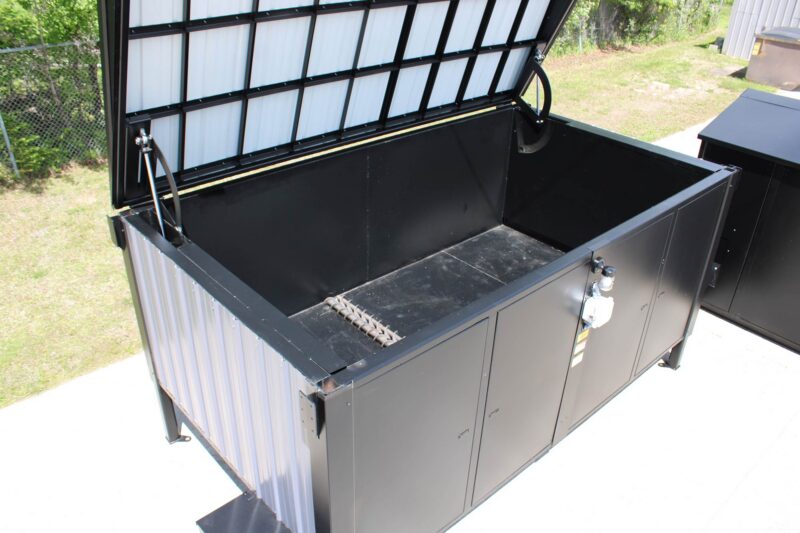

Capacity | 15 Cubic yds (Fuel) |
Lower Primary Combustion | – |
Over Fire Combustion Blower | – |
Forced Draft Fan | – |
Approximate Sq Ft | – |
Approximate BTU’S | – |
Insulation Roof/Walls | – |
409 Stainless Steel: | – |
