THE NEXT GENERATION OF OUTDOOR WOOD FURNACES IS HERE

THE PRISTINE GASIFICATION SERIES

Made from 409 Titanium Enhanced Stainless Steel

Burns up to 60% less wood

99% combustion efficiency

The Pristine Gasification Series

The next generation of outdoor wood furnaces is here

30% Biomass Stove Tax Credit Eligible

Learn More

Highlighted Furnace Features

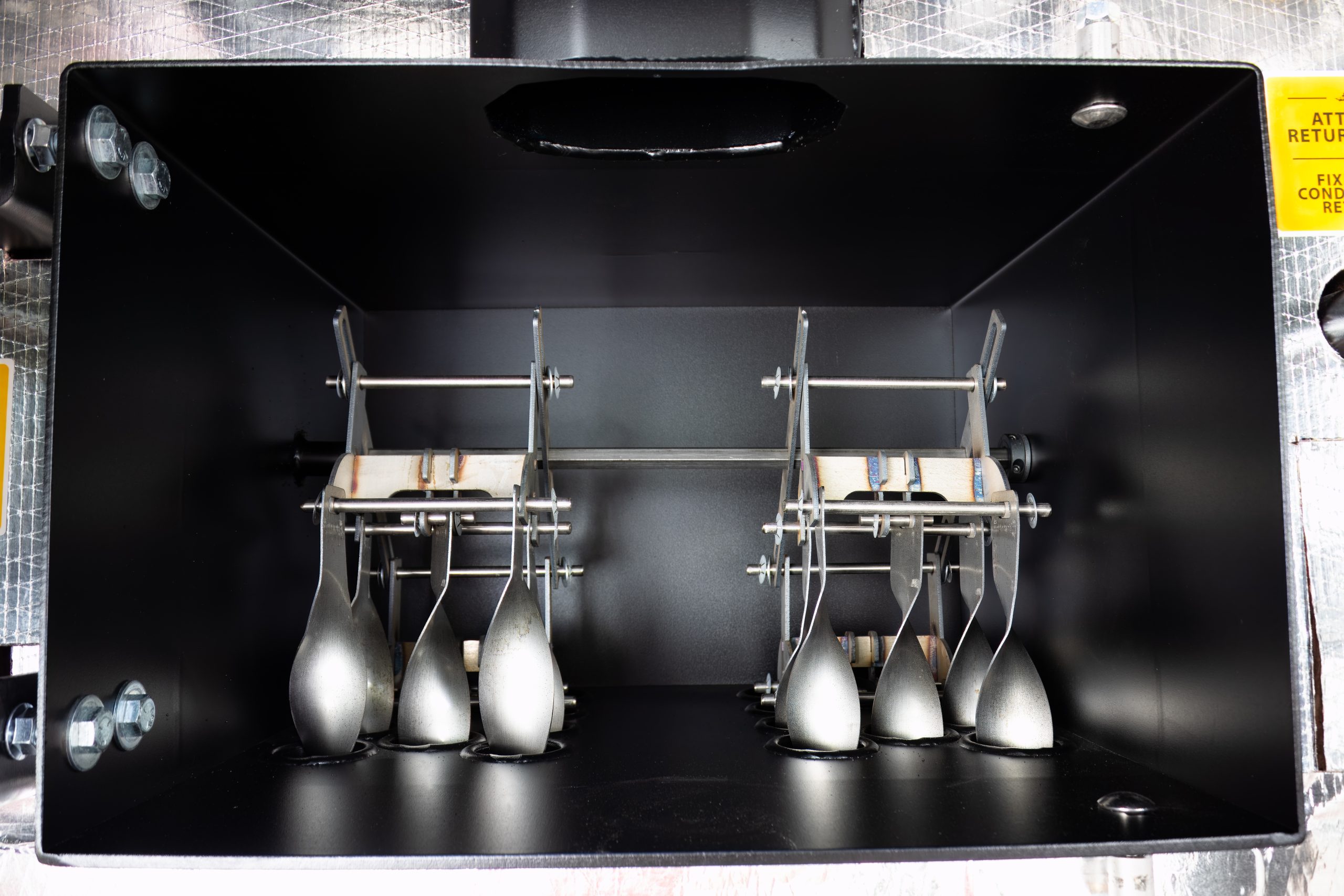

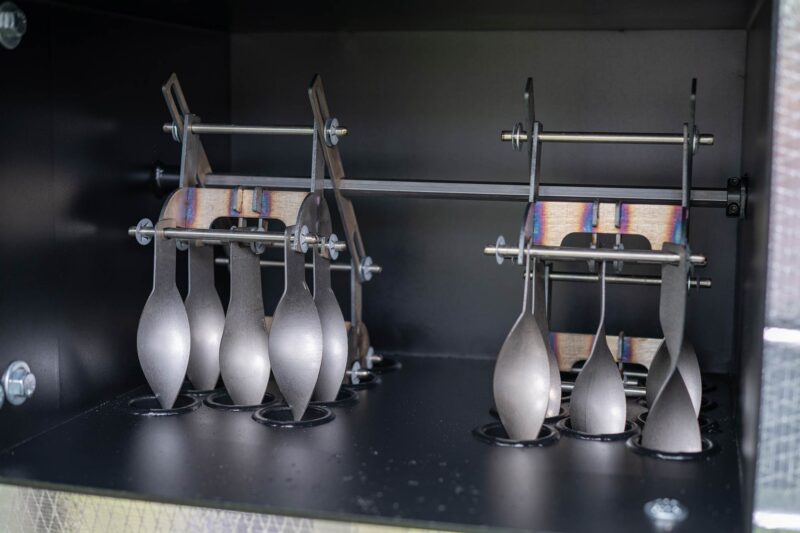

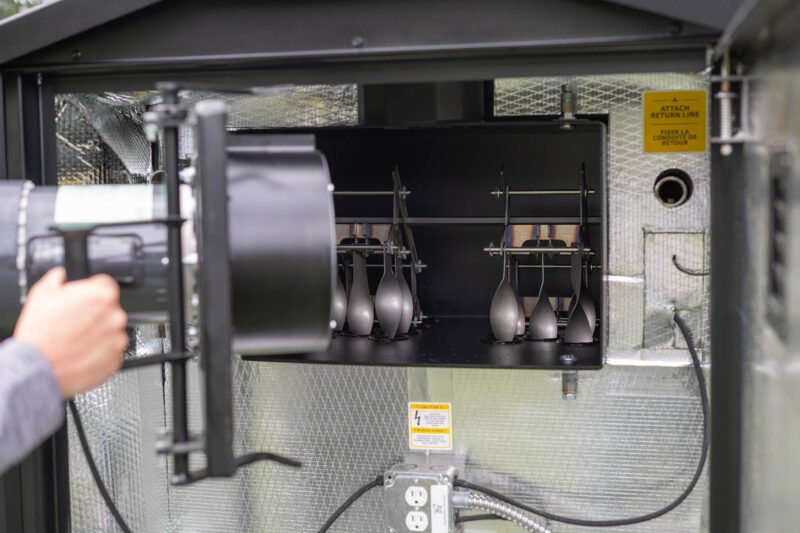

HEAT EXCHANGER CLEANERS

Our outdoor wood furnace Heat Exchanger Cleaners are created using stainless steel twisted tape turbulators. These turbulators maximize the thermal efficiency and heat transfer. Easily accessible from the front of the stove, simply push and pull the Heat Exchanger Cleaner handle. This will remove any build-up of fly ash from the Heat Exchanger tubes.

Constructed out of 409 Stainless Steel, these Heat Exchanger Cleaners have a snug fit and a spiral design. What’s so special about the spiral design? Well that slows down the flow of hot air moving through heat exchanger. Slower flow means better contact with exchanger walls increasing heat transfer efficiencies.

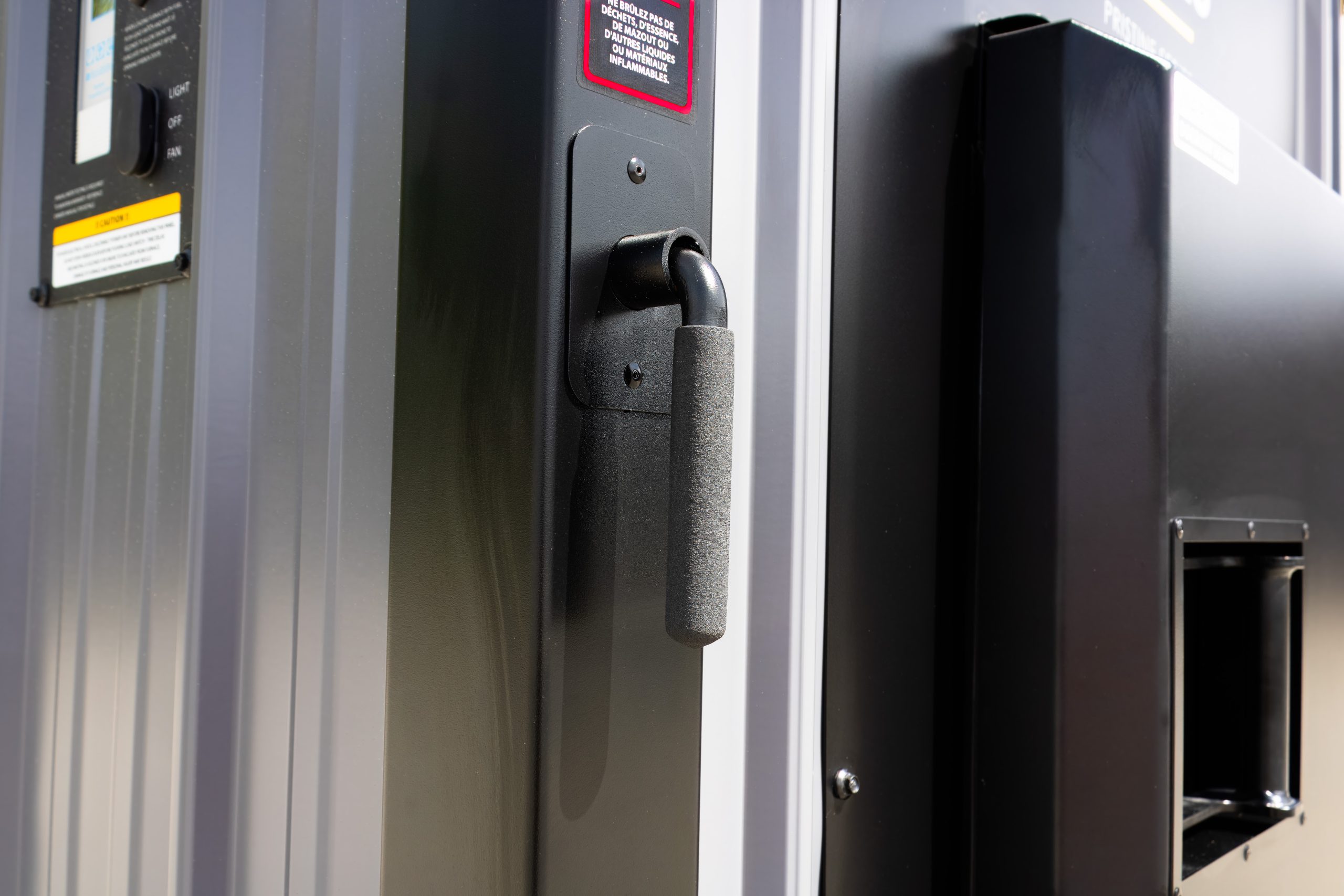

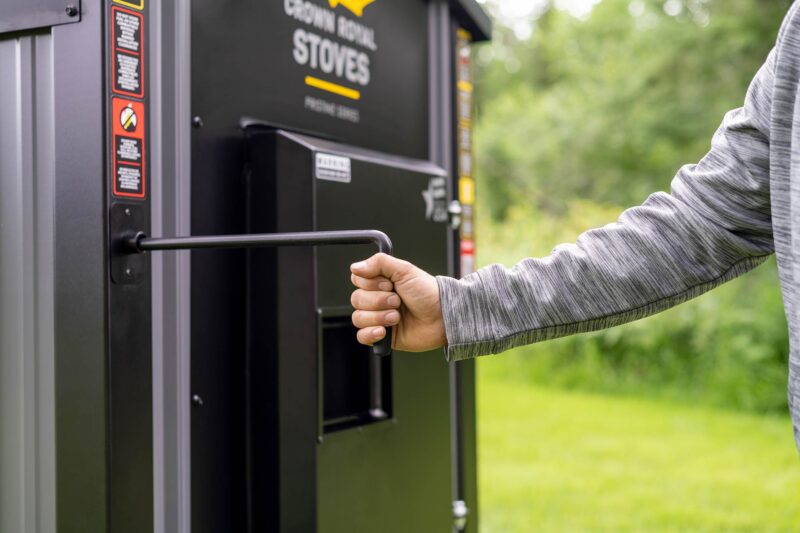

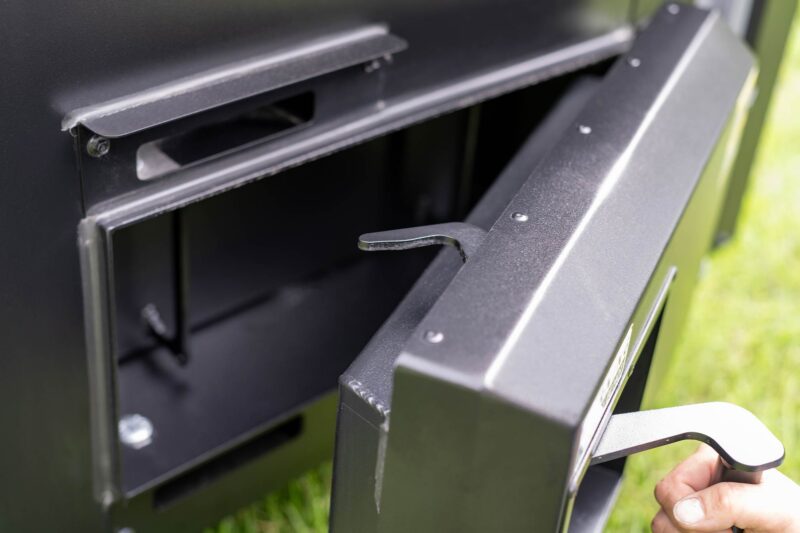

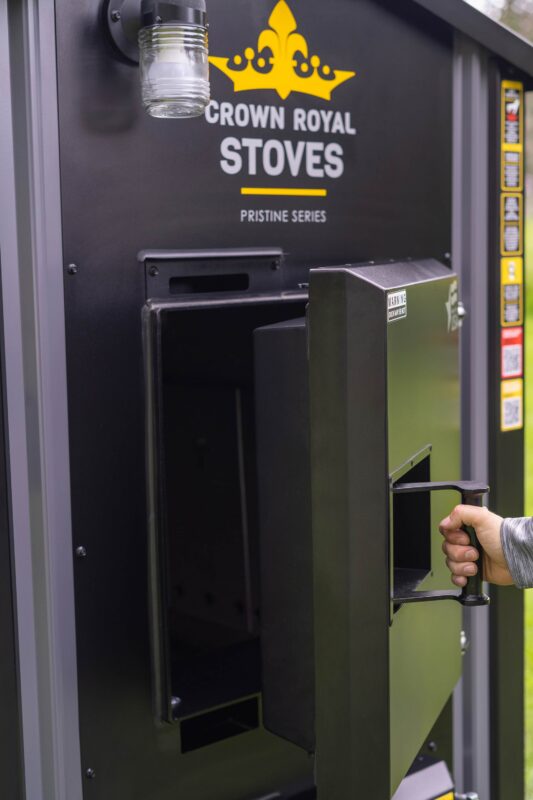

ROLLER LATCH DOOR SYSTEM

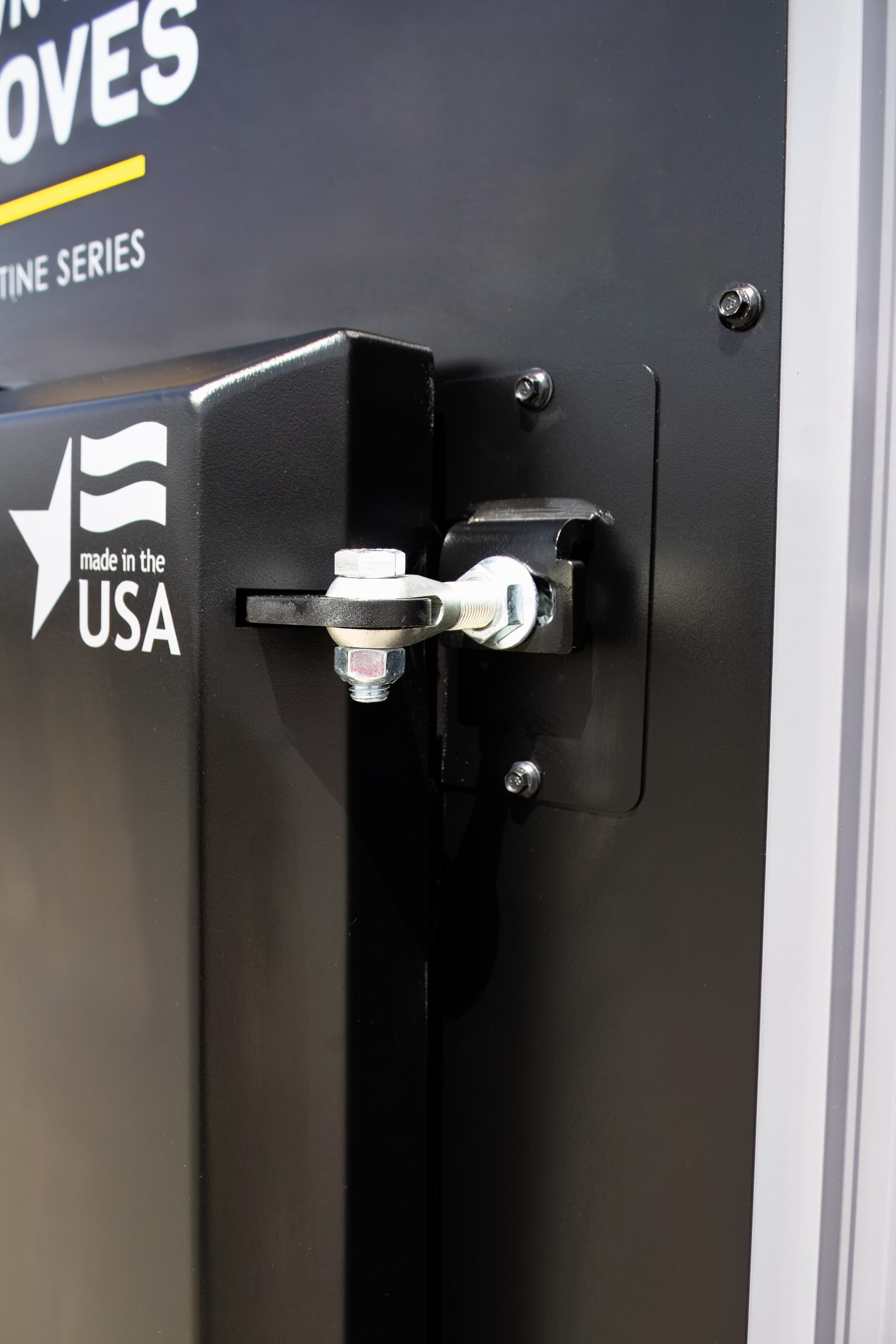

The Roller Latch Door System allows for effortless operation of the door with its positive pressure latching. The door has clean lines with no protruding surfaces, is flush mounted and has a comfortable handle. Clevis bearing hinges facilitate smooth operation while allowing for easy adjustment of the door if adjustment is required. These doors incorporate a silicon infused fiberglass door rope for longevity and superior moisture acquisition prevention. It is insulated with an interior 5 inches of high temp ceramic insulation, a 3-inch air space, and an exterior cover for a cool-to-the-touch door while still retaining superior heat retention qualities.

PRIMARY COMBUSTION AIR PANEL

The Air Panels of the Pristine Series are constructed from the same 409 Stainless Steel as the rest of the wood furnace. Where these stand out the air panels enhance the air distribution while mitigating wear and tear on the firebox and structure.

The Air Panel Hook is designed to allow each section to expand and contract independently. This prevents them from cracking the poured refractory Gasification Manifold or piercing the Water Jacket. Additionally, the Air Panels are designed to be replaceable as they age, drastically increasing the lifespan of the outdoor wood furnace.

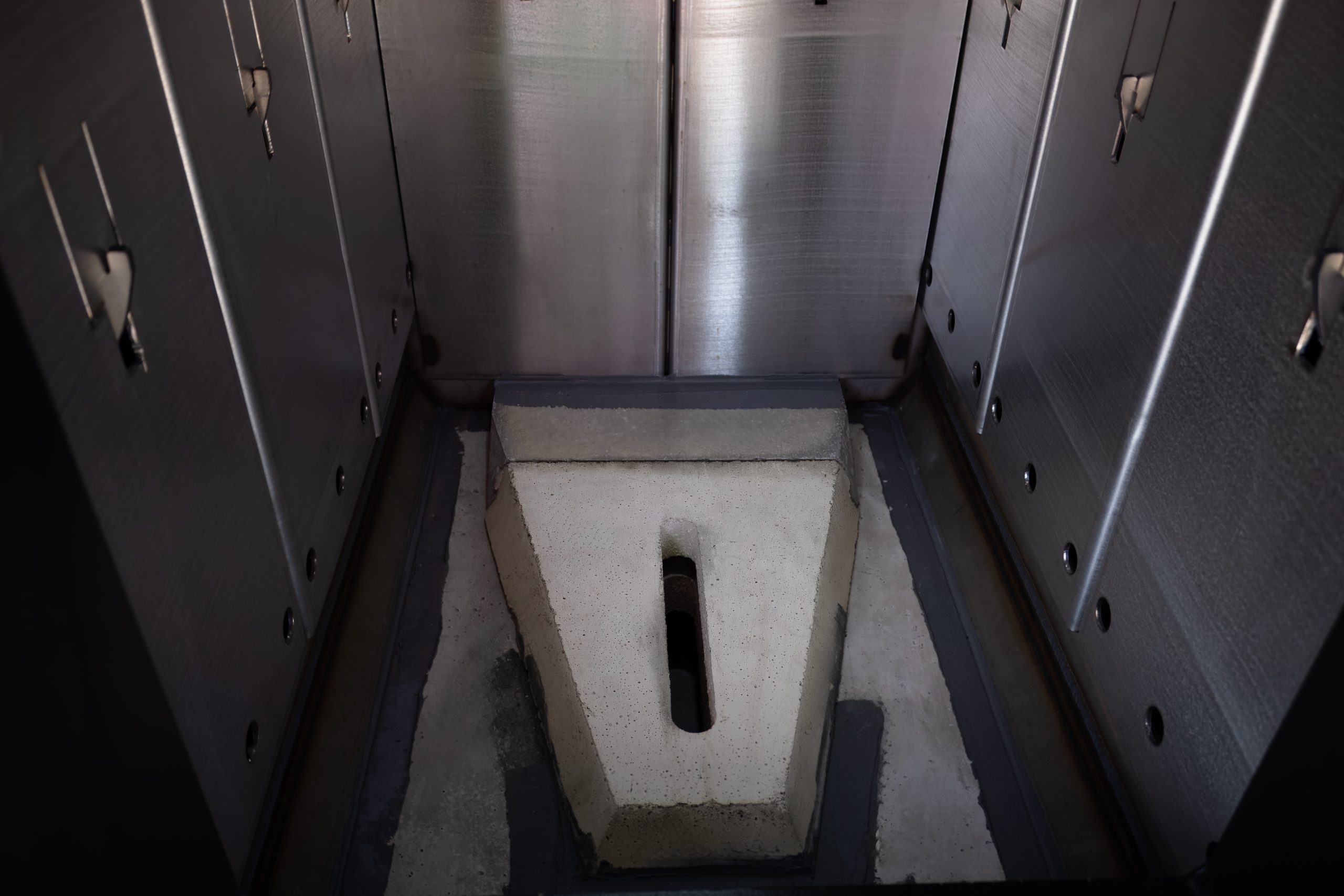

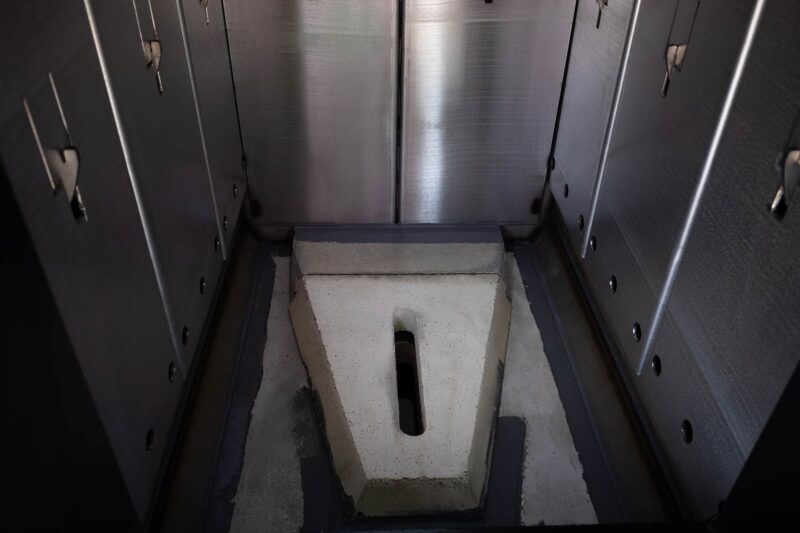

GASIFICATION MANIFOLD

The Gasification Manifold is a uniquely designed, high temperature poured refractory unit, that injects preheated air directly at the combustion zone. This process drastically increases the burn efficiency, igniting all gases, causing the flame in the second combustion chamber to reach as high as 2,300°F.

Highlighted Furnace Features

HEAT EXCHANGER CLEANERS

ROLLER LATCH DOOR SYSTEM

PRIMARY COMBUSTION AIR PANEL

GASIFICATION MANIFOLD

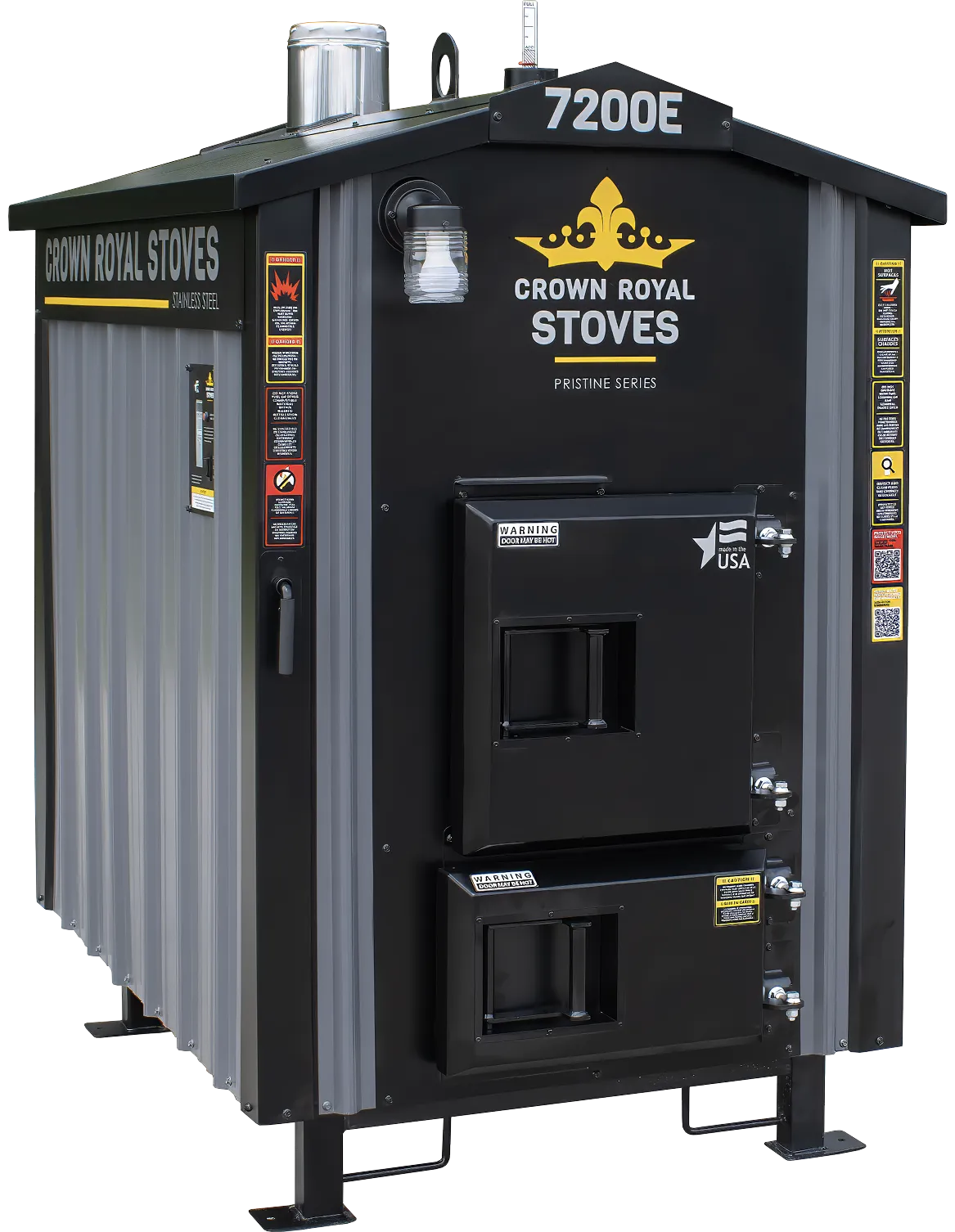

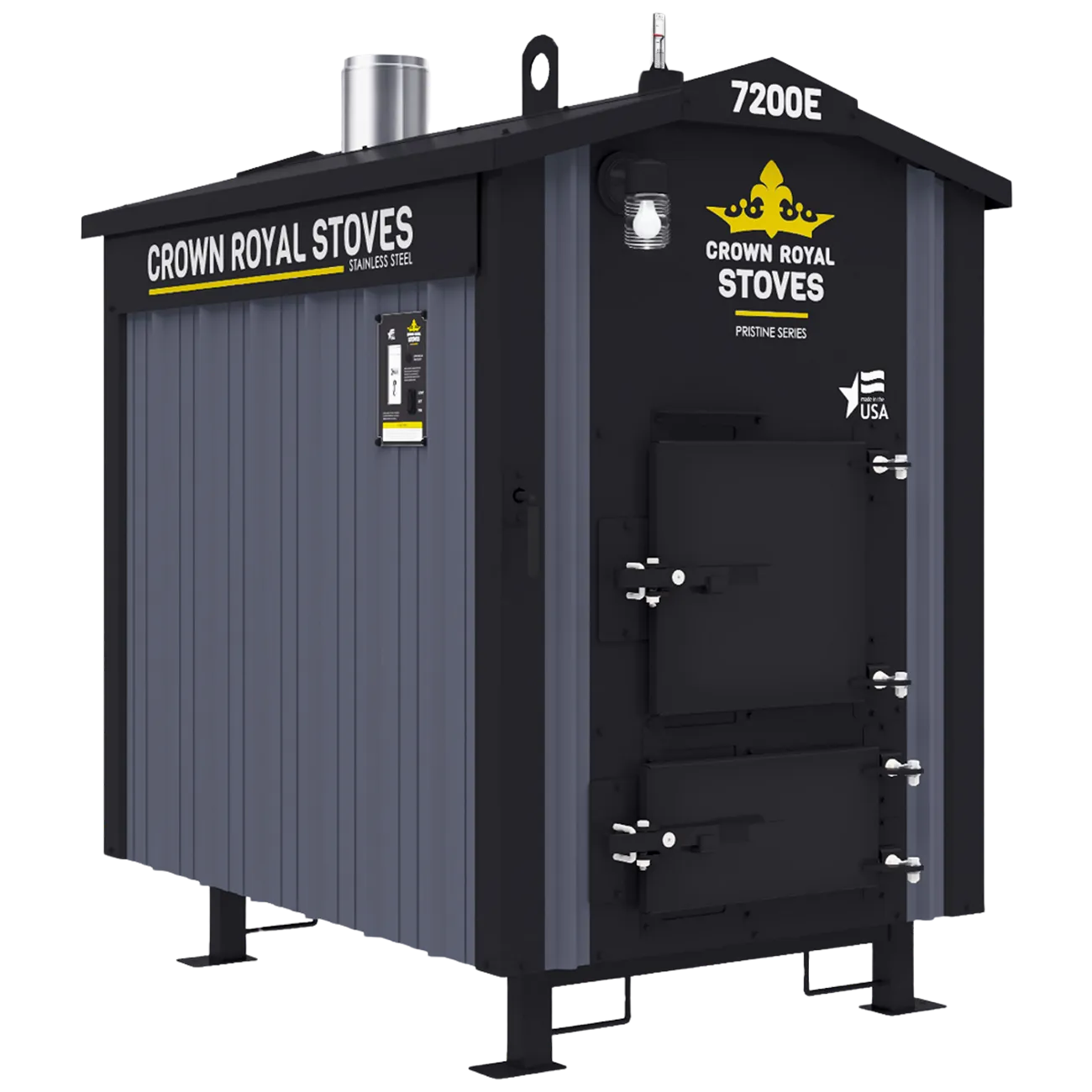

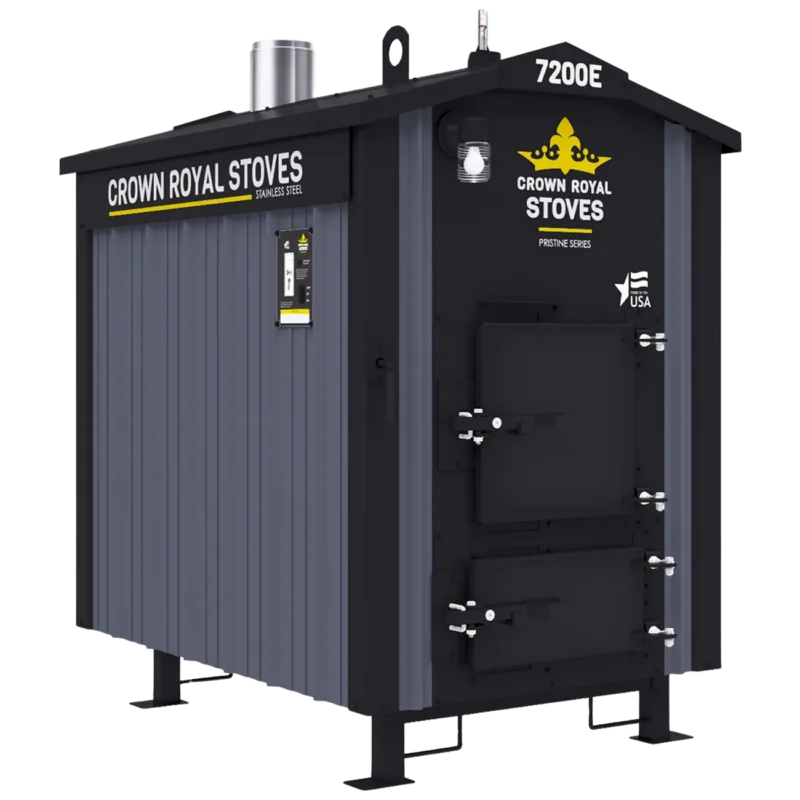

Pristine Model Specifications

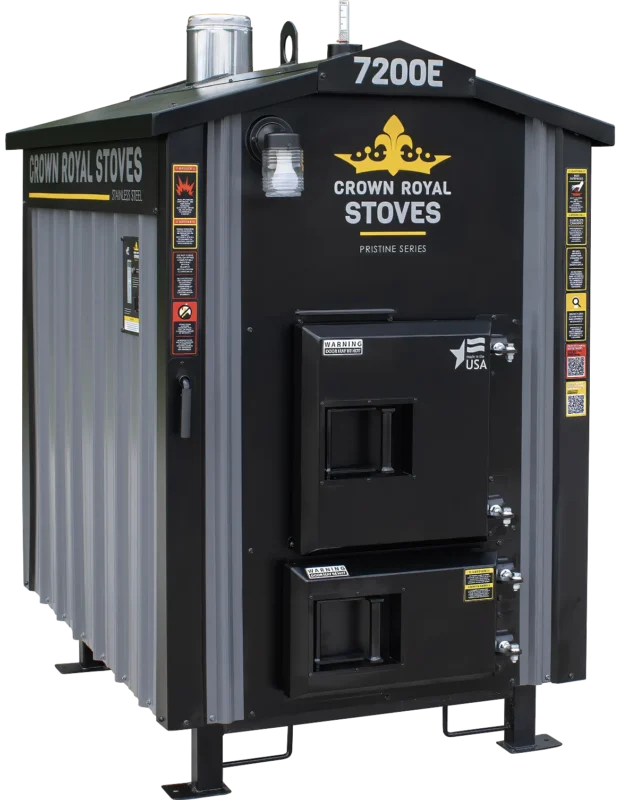

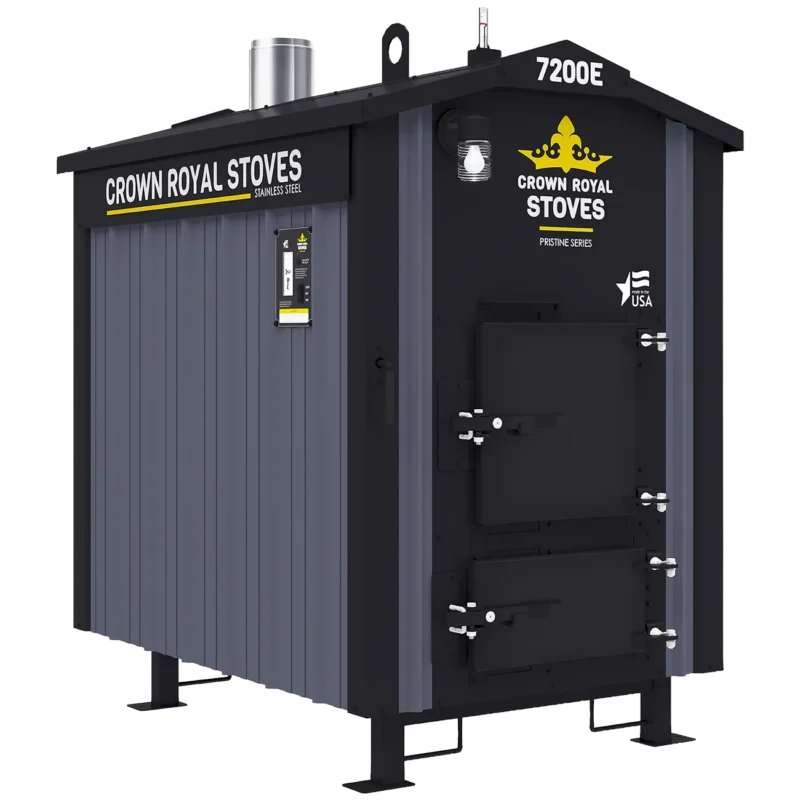

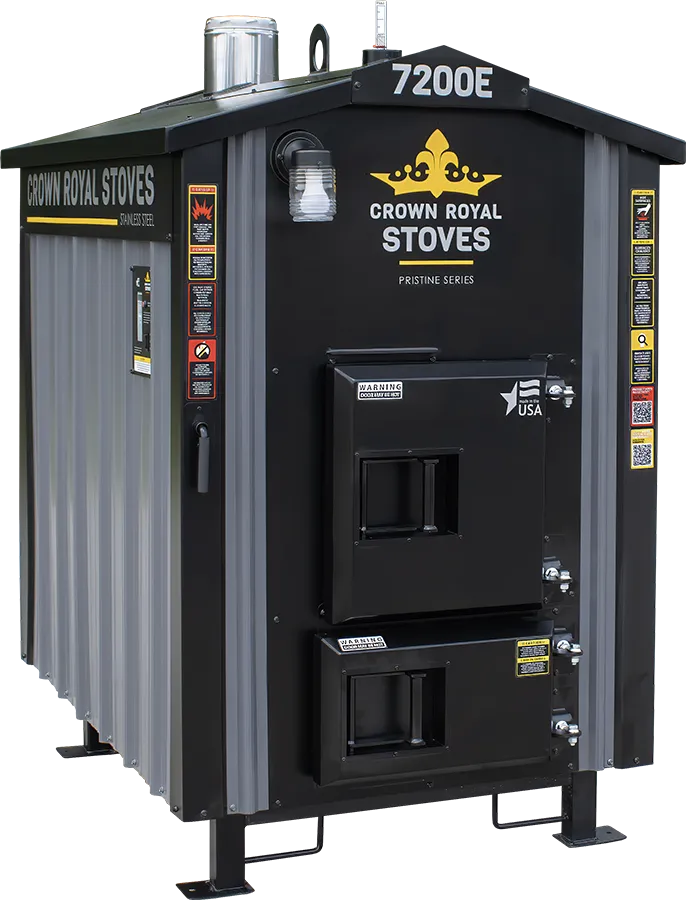

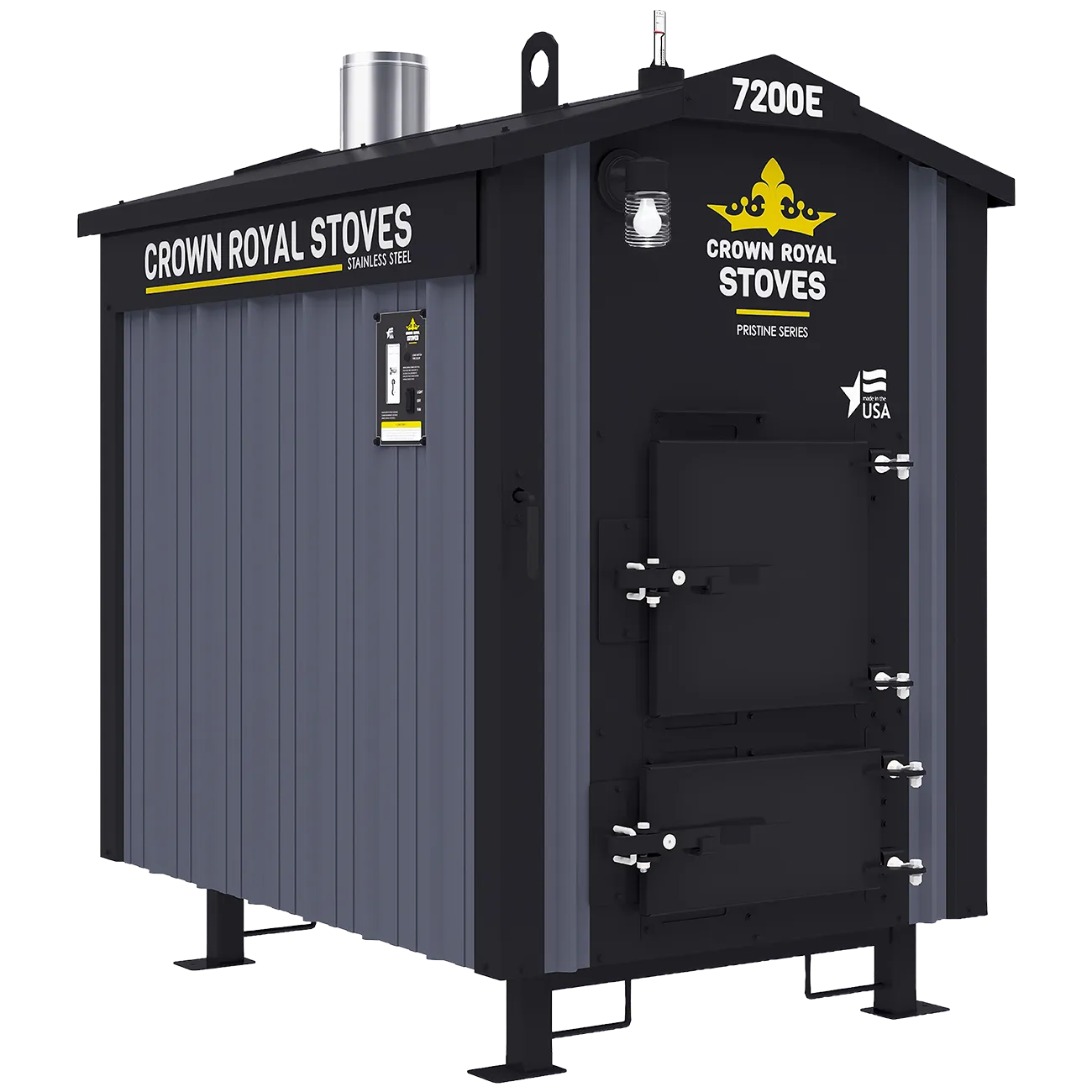

7200E

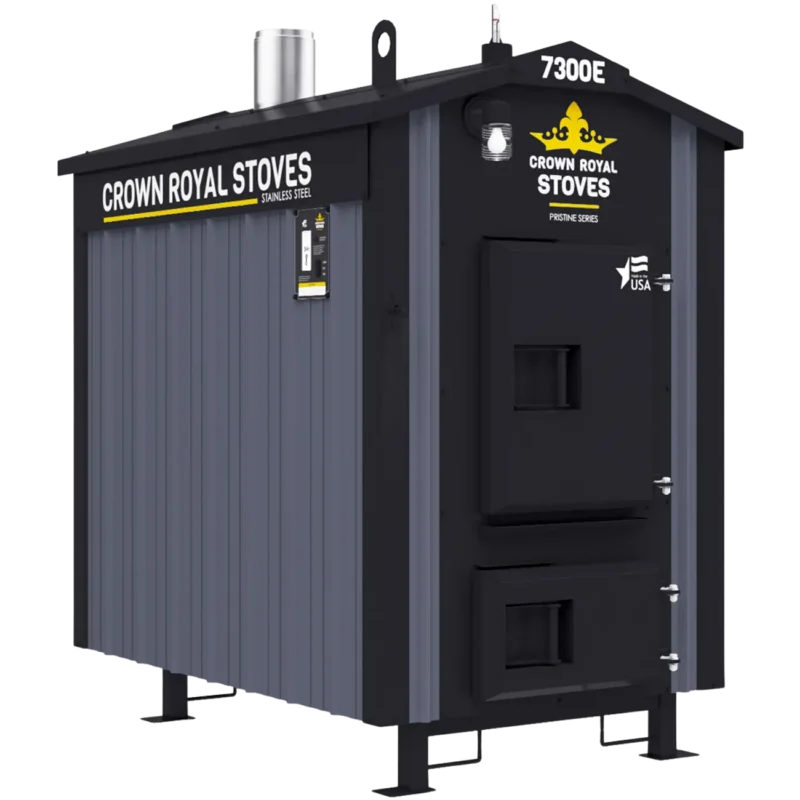

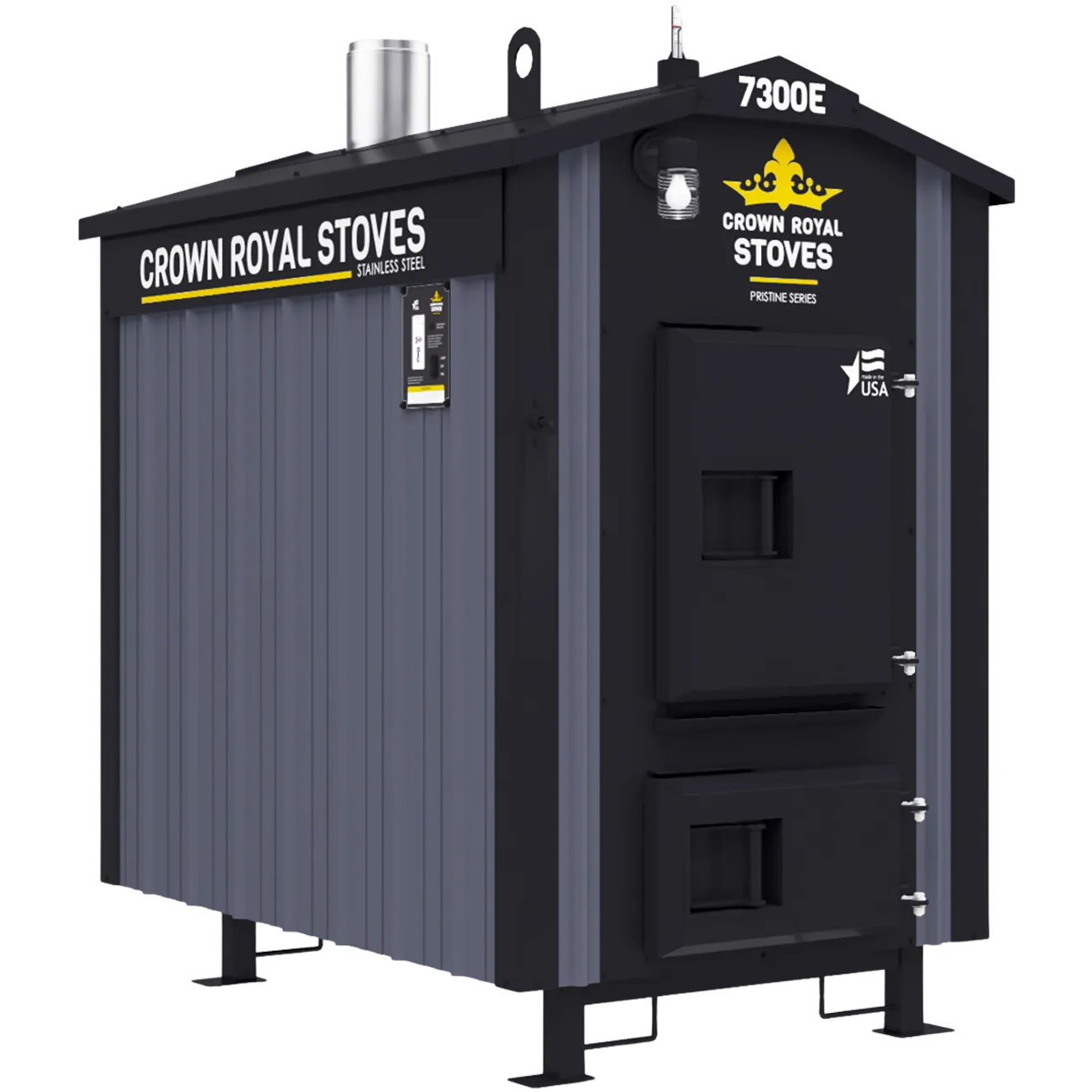

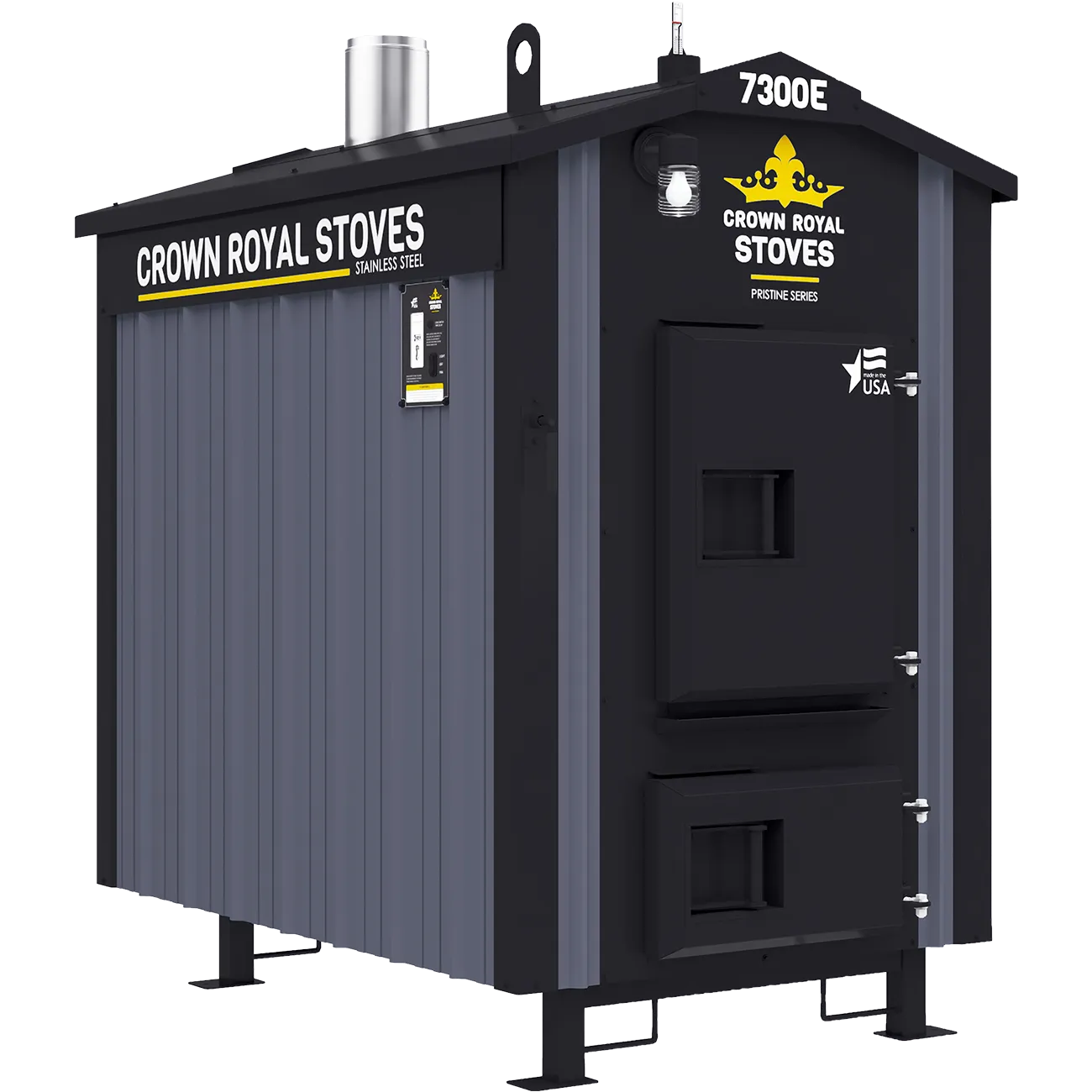

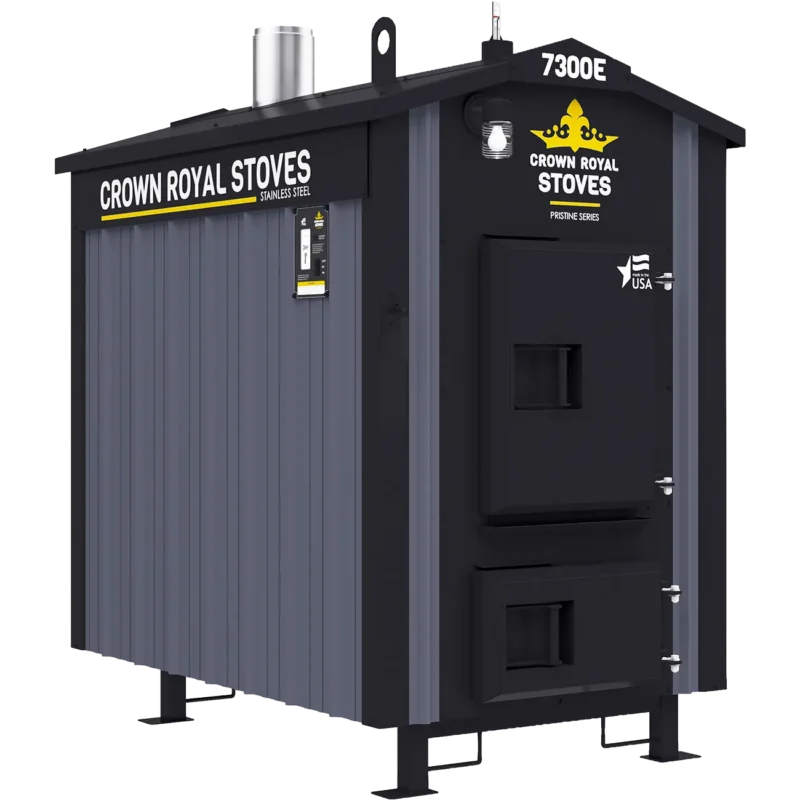

7300E

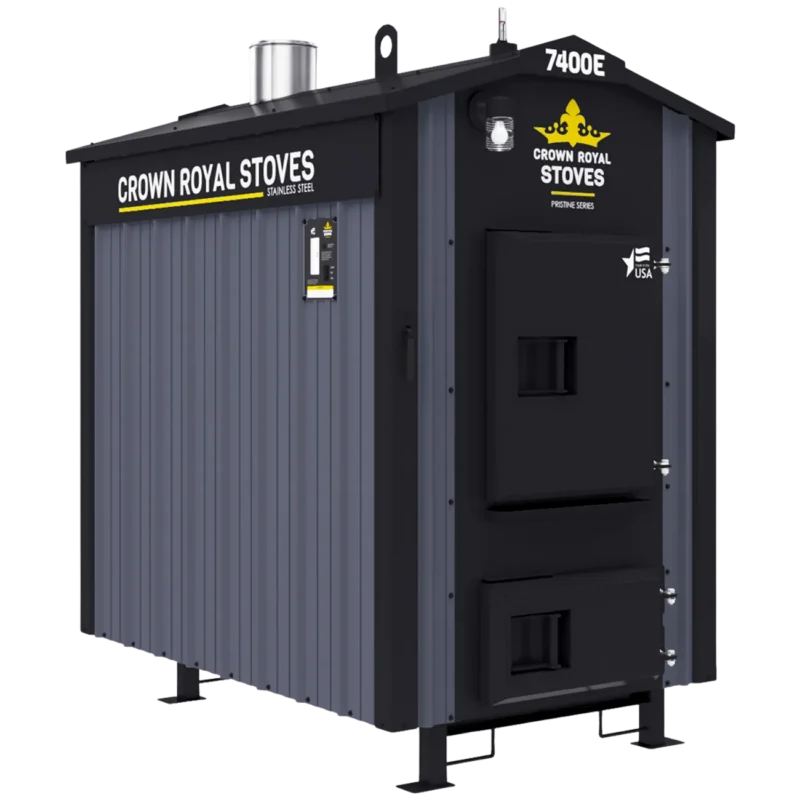

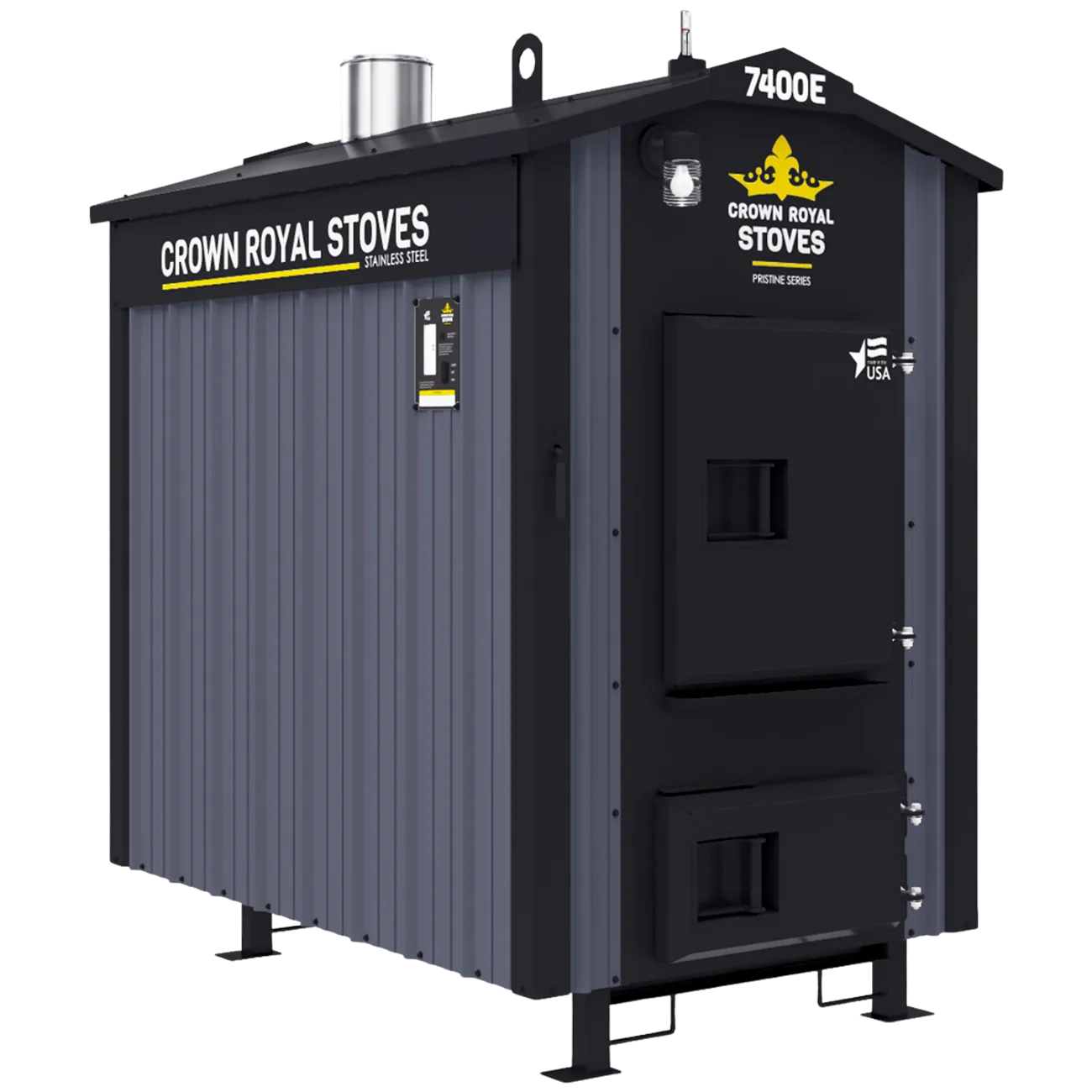

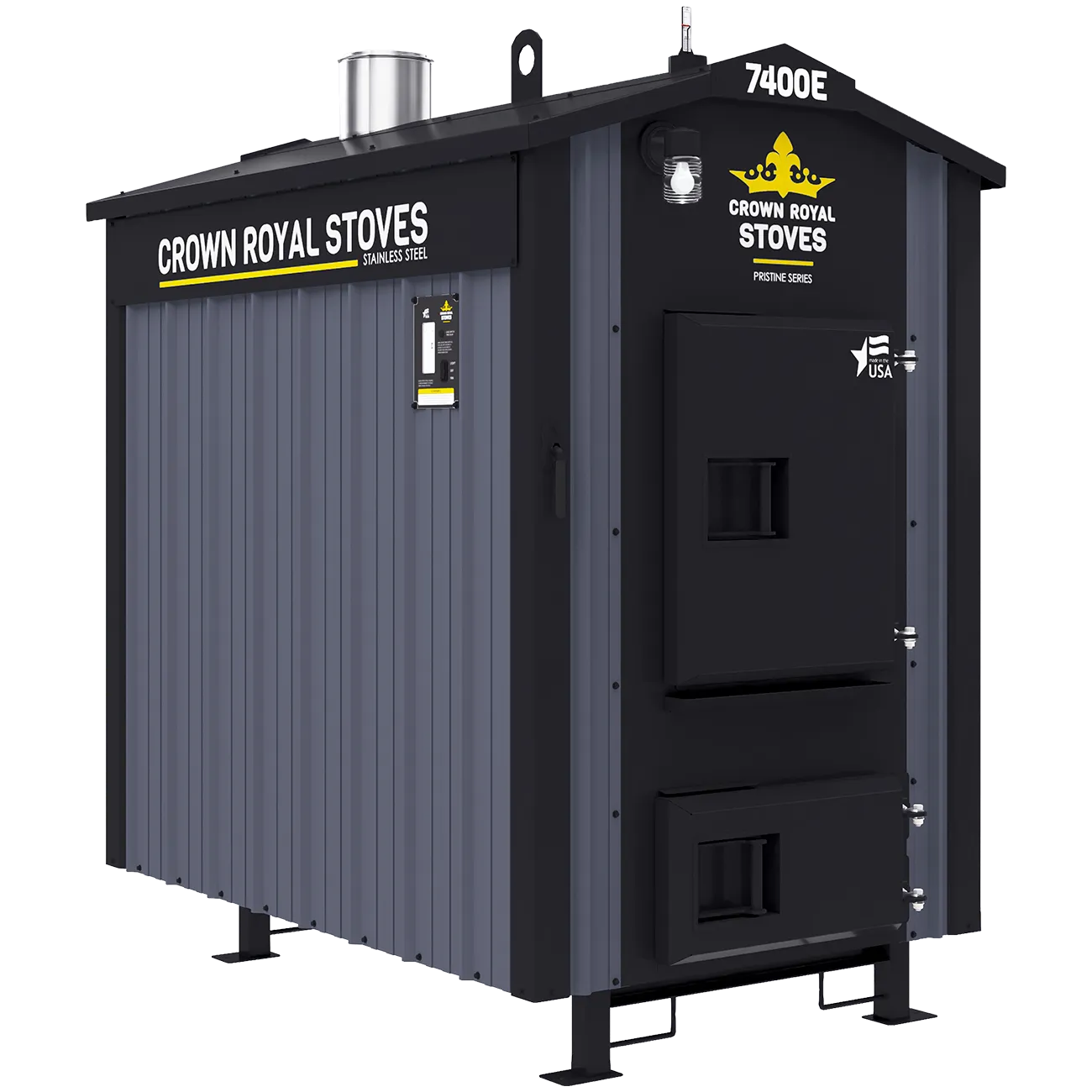

7400E

Estimated Weight:	1,950 LBS
Width:	48″
Length:	74″
Height:	78″
Firebox Length:	28″
Chimney Size:	6″
Door Size:	18″ x 18″
Supply Size:	1 – 1 1/4″

Return Size:	1 – 1 1/4″
Water Capacity:	180 Gallons

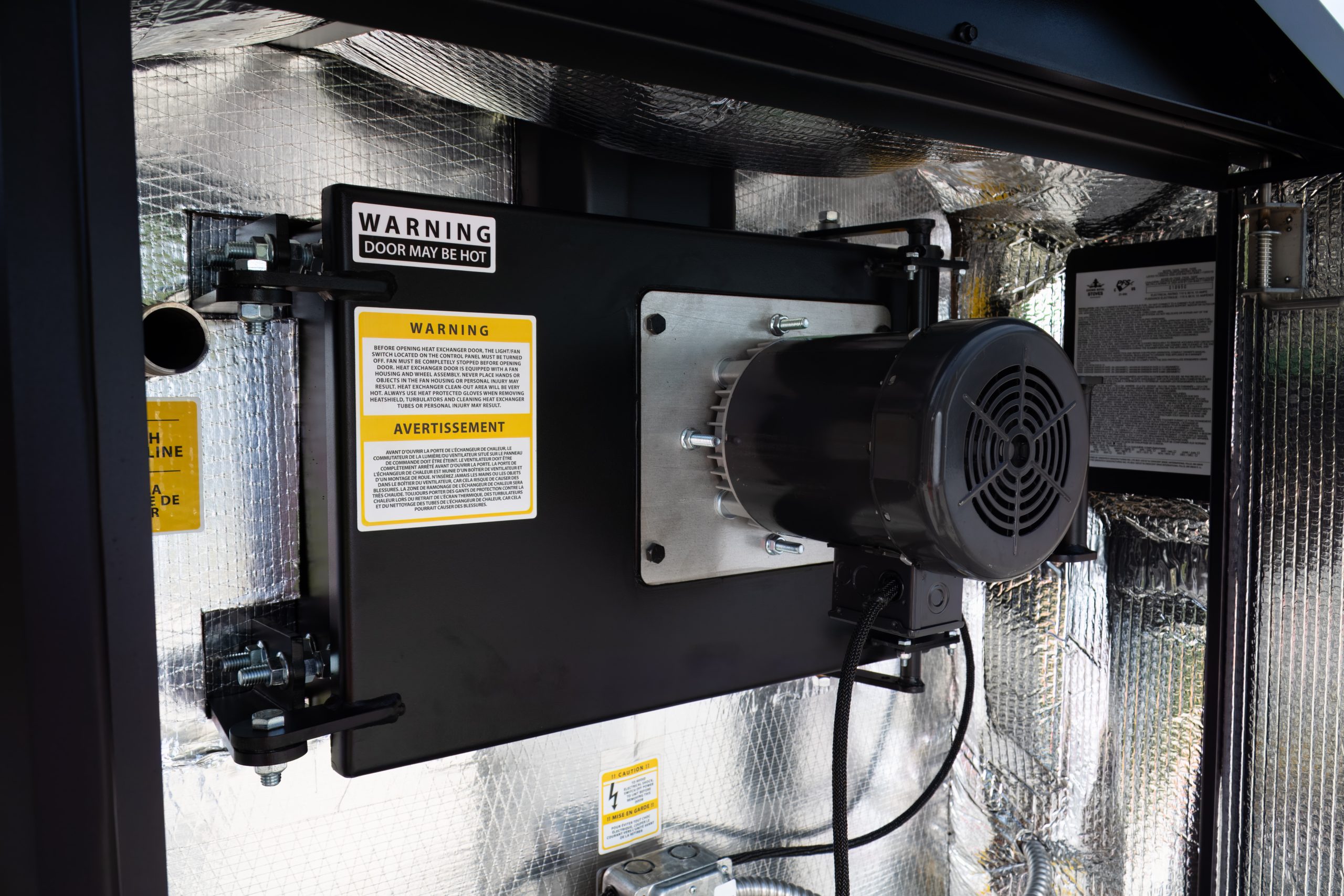

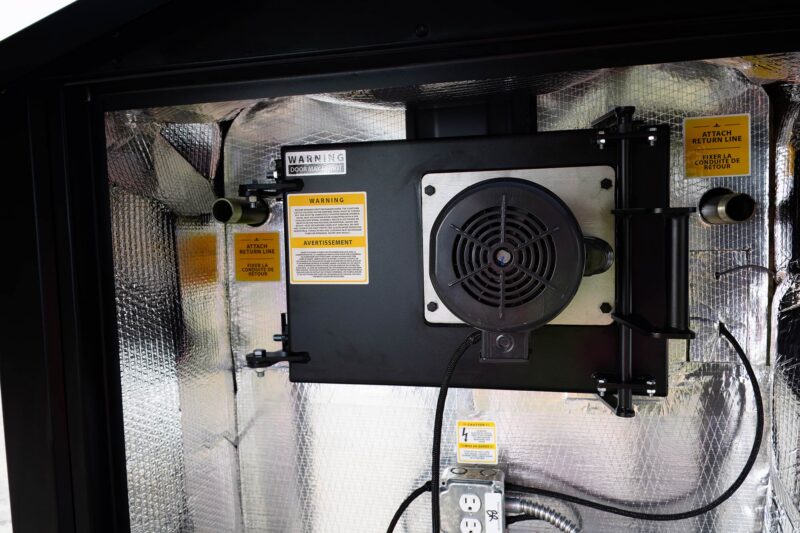

Turbo Fan:	3,000 RPM
Approximate Sq Ft:	2,000 – 3,000
Approximate BTU’S:	125,000
Insulation Roof/Walls:	R30
409 Stainless Steel:	YES
EPA Certified:	YES

Estimated Weight:	2,650 LBS
Width:	50″
Length:	79″
Height:	87″
Firebox Length:	32″
Chimney Size:	6″
Door Size:	20″ x 24″
Supply Size:	2 – 1 1/4″

Return Size:	2 – 1 1/4″
Water Capacity:	235 Gallons
Turbo Fan:	3,450 RPM
Approximate Sq Ft:	4,000 – 5,000
Approximate BTU’S:	221,000
Insulation Roof/Walls:	R30
409 Stainless Steel:	YES
EPA Certified:	YES

Estimated Weight:	2,950 LBS
Width:	53″
Length:	85″
Height:	93″
Firebox Length:	36″
Chimney Size:	8″
Door Size:	22″ x 26″
Supply Size:	2 – 1 1/4″

Return Size:	2 – 1 1/4″
Water Capacity:	290 Gallons
Turbo Fan:	3,450 RPM
Approximate Sq Ft:	8,000 – 10,000
Approximate BTU’S:	325,000
Insulation Roof/Walls:	R30
409 Stainless Steel:	YES
EPA Certified:	YES

PDF BROCHURE PDF MANUAL

Other Furnace Features

409 Titanium Enhanced Stainless Steel Firebox & Water Jacket

Developed to withstand the high temperatures of gasification, 409 Stainless Steel provides the best corrosion resistance, maximum heat transfer and strength needed for the firebox and water jacket.

Firebrick Refractory

Durable and custom designed to withstand and store heat used in gasification process to achieve low thermal conductivity for greater energy efficiency.

Easy Maintenance

Insulated rear heat transfer door provides you with easy access to the heat transfer tubes for general cleaning.

Ultra-Temp Insulated Stainless Steel Chimney

Stainless steel inner and outer shell for added durability. Double wall insulated chimney allows the chimney to be easily expandable, with interlocking lengths available.

Water Level Indicator

Easy to read water level indicator will keep you informed when additional water must be added.

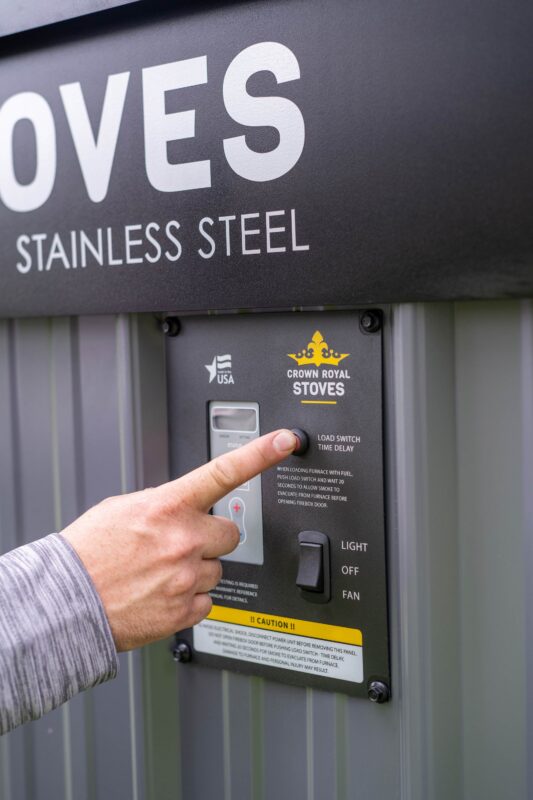

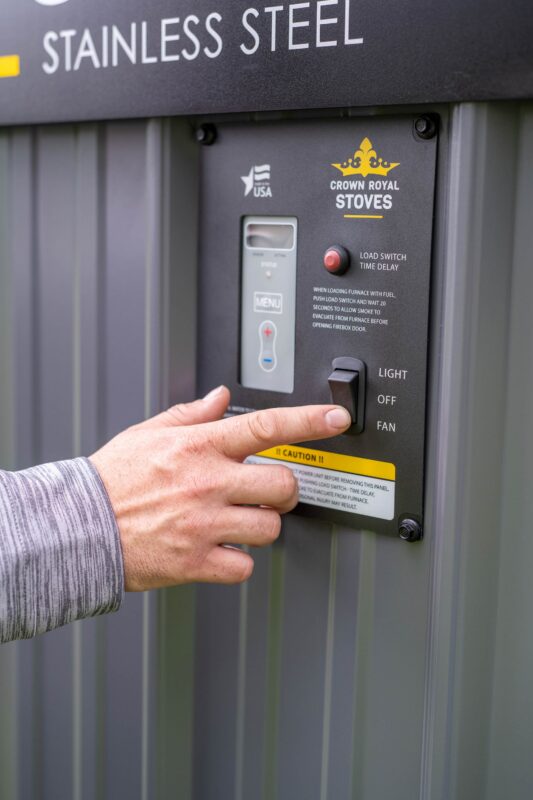

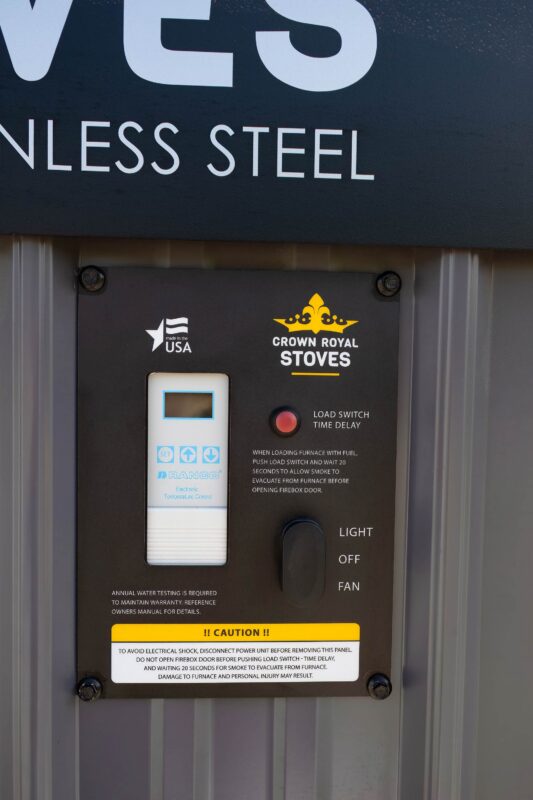

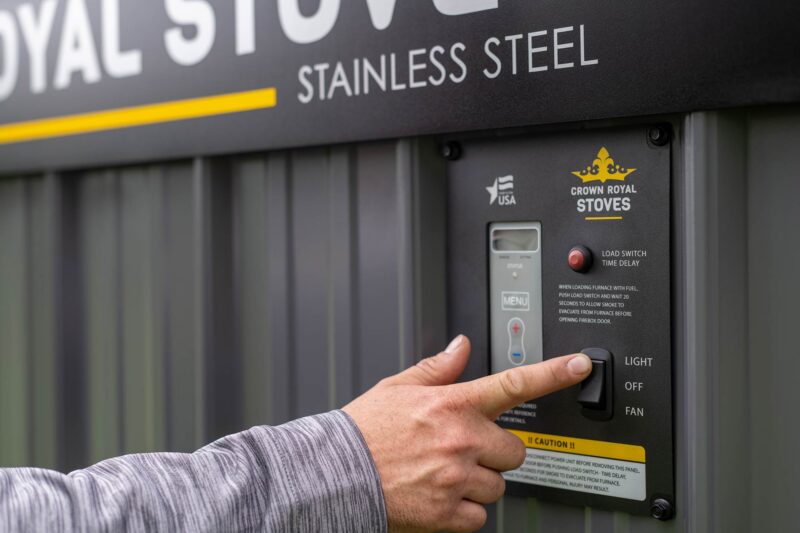

Easy to use Controls

The Pristine series is thermostatically controlled to offer an even heat throughout your home or business. Our digital illuminated controls are easy to read at all times. Due to their designs they are also economical and easy to replace.

Multiple Clean Out Doors

Easily accessible for cleaning.

Cost Savings

Crown Royal Stove owners can save approximately 50% – 100% of their annual heating costs. They may also Reduce or even eliminate hot water bills and the dependence on foreign fuels.

Convenience

Depending on the outdoor temperature and size of the unit, our outdoor furnaces only need to be loaded once or twice a day. Since our units are installed outdoors it eliminates dirt, bark, ash, smoke, soot, or insects from inside your home that may have otherwise been there if an indoor unit were installed. It now stays outside where it belongs. With proper installation requirements you may also melt away snow from driveways and sidewalks.

Manufactured with Safety in Mind

With an outdoor stove you eliminate the risk of a house fire, chimney fire, indoor smoke, or carbon monoxide poisoning. Our unique Firebox Safety Latch System prevents the loading door from swinging open too quickly. Each Crown Royal Stove has been rigorously tested to ensure a durable, dependable furnace.

Other Furnace Features

409 Titanium Enhanced Stainless Steel Firebox & Water Jacket

Developed to withstand the high temperatures of gasification, 409 Stainless Steel provides the best corrosion resistance, maximum heat transfer and strength needed for the firebox and water jacket.

Firebrick Refractory

Durable and custom designed to withstand and store heat used in gasification process to achieve low thermal conductivity for greater energy efficiency.

Easy Maintenance

Insulated rear heat transfer door provides you with easy access to the heat transfer tubes for general cleaning.

Ultra-Temp Insulated Stainless Steel Chimney

Stainless steel inner and outer shell for added durability. Double wall insulated chimney allows the chimney to be easily expandable, with interlocking lengths available.

Water Level Indicator

Easy to read water level indicator will keep you informed when additional water must be added.

Easy to use Controls

Multiple Clean Out Doors

Easily accessible for cleaning.

Cost Savings

Crown Royal Stove owners can save approximately 50% – 100% of their annual heating costs. They may also Reduce or even eliminate hot water bills and the dependence on foreign fuels.

Convenience

Manufactured with Safety in Mind

Attributes

409 Titanium Enhanced Stainless Steel
Gasification Process
Firebrick Refractory
Stainless Steel Heat Transfer Tubes
Heat Exchanger Cleaners
Twisted Tape Turbulators
Fan Forced Draft
Class A Insulated Chimney
Non-Stick Door Gasket
Insulated – Walls R30, Roof R30
Water Level Indicator
Roller Latch Door System
Digital Control Panel
20 Year Limited Warranty

Advantages

Less wood consumption, saving you more money
Improved, smoke free combustion for a clean burn
Thermal & energy efficient with fewer emissions providing environmentally responsible heat
Reliable design, giving you convenient, time saving features including easy maintenance & extended burn times
Refires automatically, to maximize & control energy use and heat delivery
Reduces your carbon footprint by using a renewable heat source and becomes carbon neutral

Benefits

No Mess in the House
Works with Any Existing System
No Carbon Monoxide Caused by Gas Fumes
Large Firebox & Loading Door
Cost Effective Heat Source
Multiple 1-1/4″ Supply & Return Connections
Easily Removable Rear Access Door to Plumbing Connections

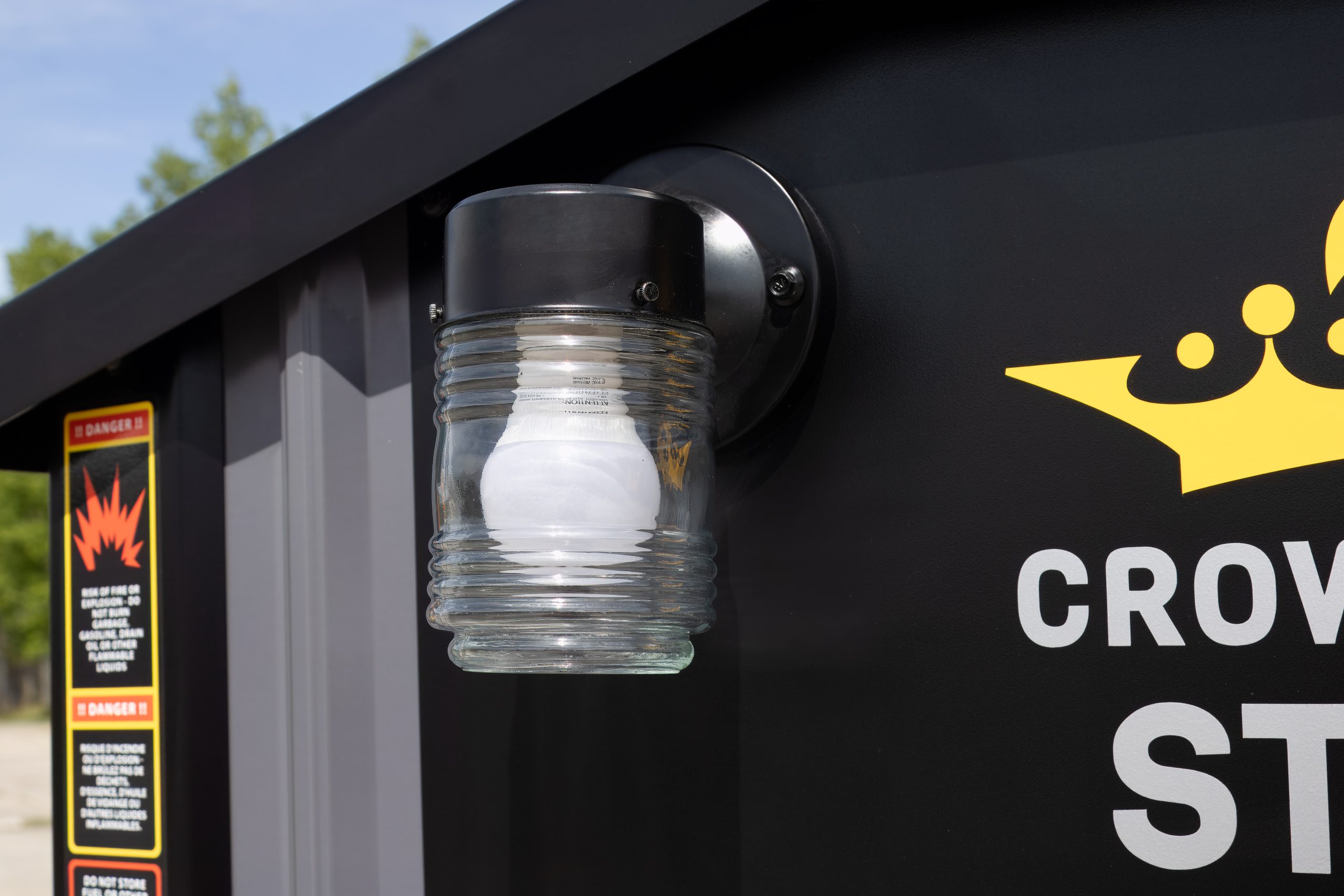

Light for Night Loading

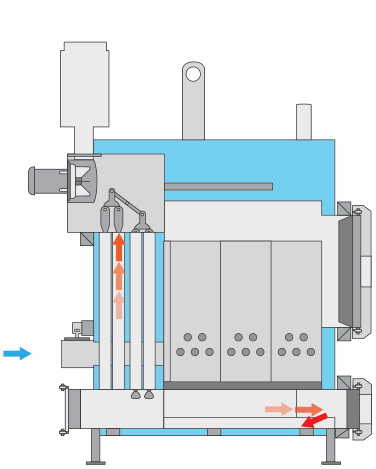

Negative Pressure Gasification Combustion

For the Pristine Gasification Series outdoor wood furnaces to achieve a 99% combustion efficiency we had to take a new approach to air flow. Instead of “pushing” the air from the top, we decided to “pull” the air from the bottom, creating a Negative Pressure Gasification System.

When the outdoor wood furnace is completely sealed, the air is “pulled” downward, forcing all gasses from the Firebox through the ash bed into the Secondary Combustion Chamber. This makes the system virtually smokeless, with lower exhaust temperatures at the chimney, and allows wood placement to be more forgiving.

Furnace Applications

Residential Homes

Pools/Hot Tubs

Domestic Hot Water

Radiant In-Floor Heating

Commercial

Greenhouses

Garages & Workshops

Barns & Agricultural

Kiln Dry Wood

Furnace Applications

Residential Homes
Pools/Hot Tubs
Domestic Hot Water
Radiant In-Floor Heating
Commercial
Greenhouses
Garages & Workshops
Barns & Agricultural
Kiln Dry Wood

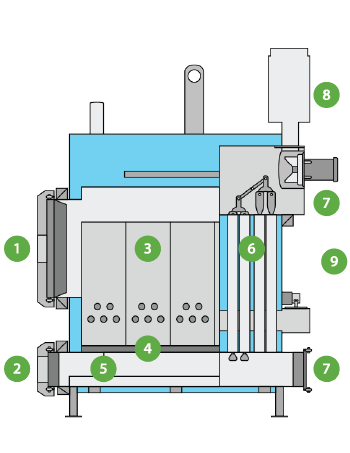

Pristine Series Specifications

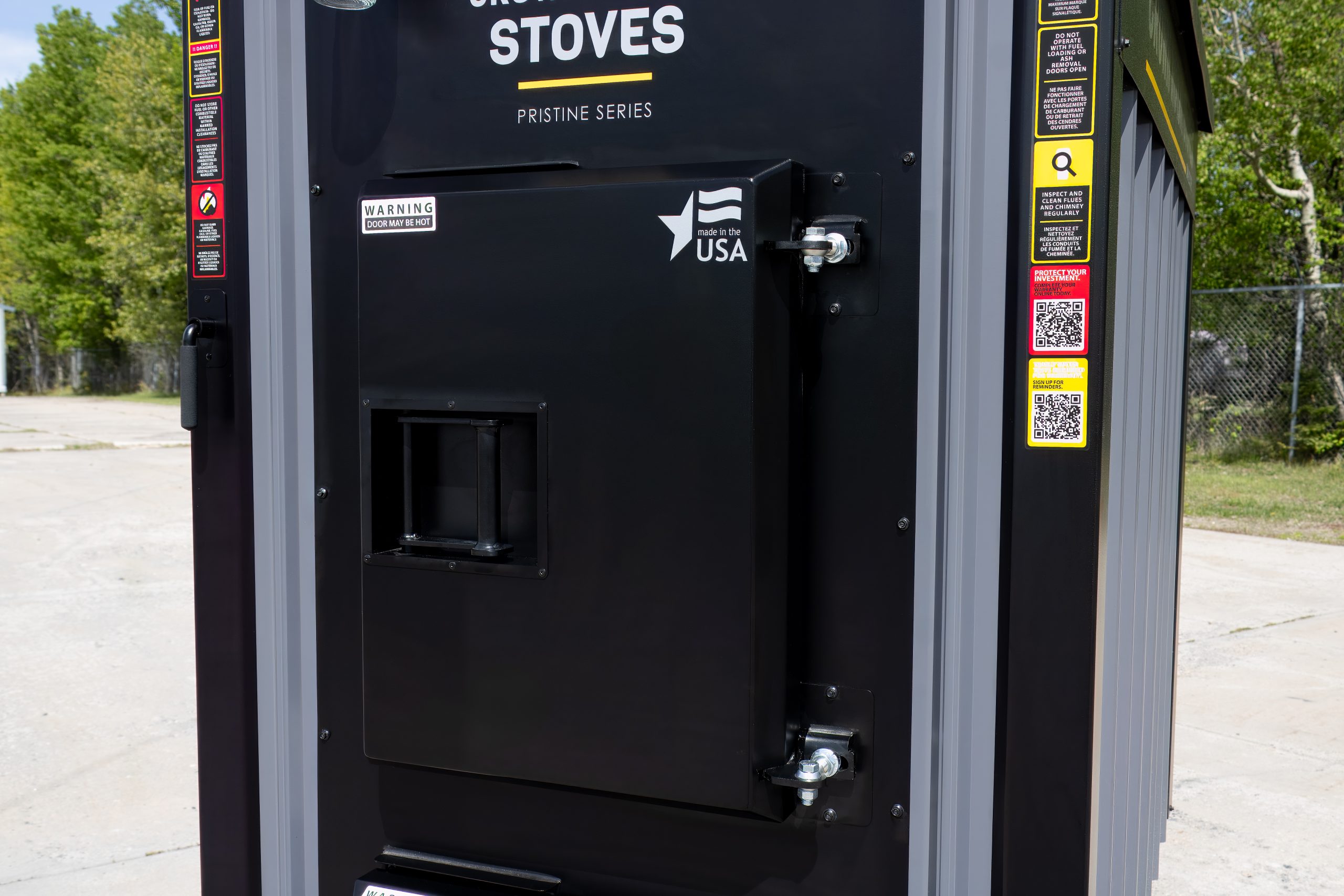

FIREBOX DOOR
Extra large, insulated door for easy fuel loading. Equipped with the roller bearing door latch.

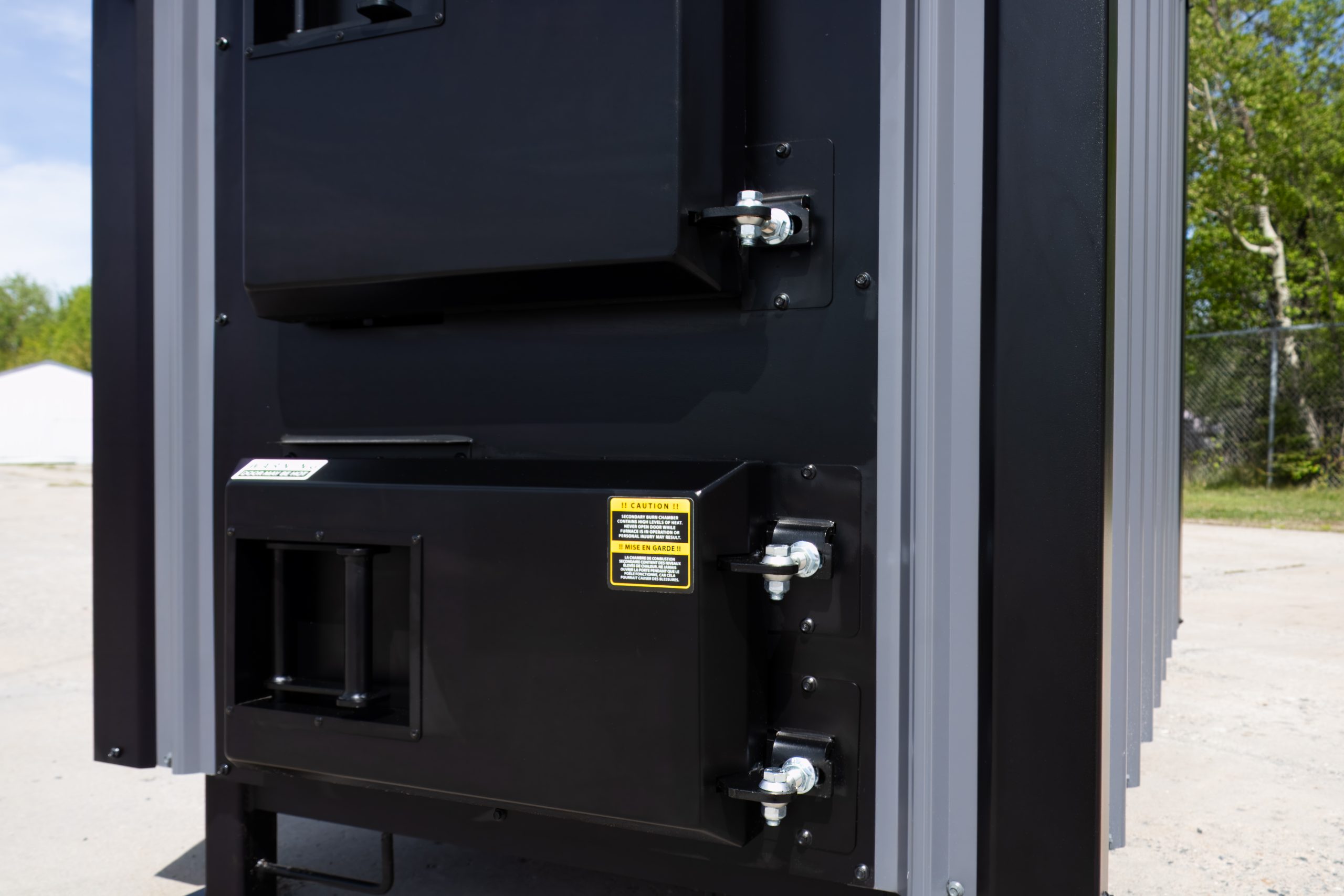

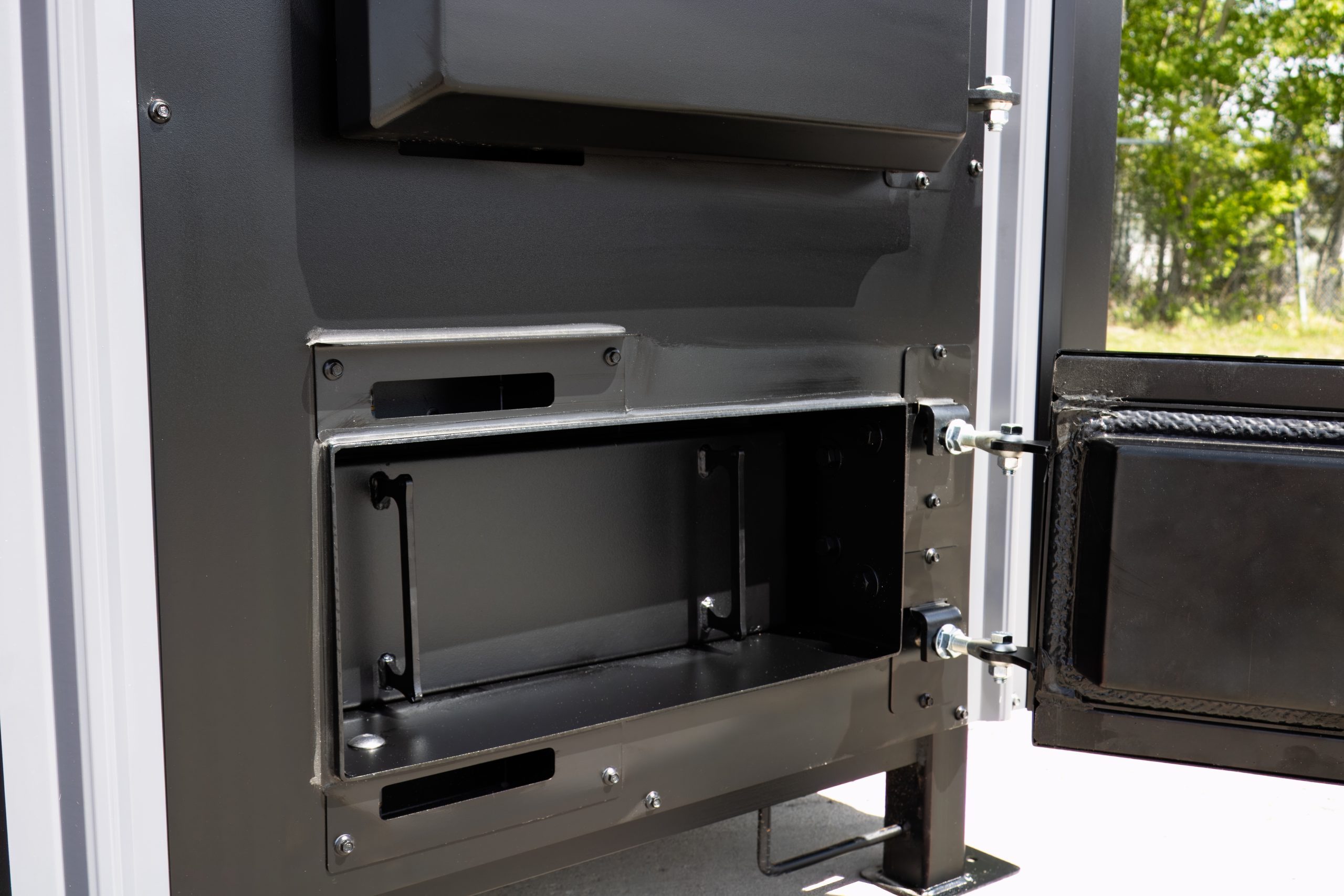

SECONDARY COMBUSTION CHAMBER DOORS
Wide insulated door providing access to the secondary combustion chamber for cleaning.

PRIMARY BURN CHAMBER & AIR PANELS
Large sealed firebox chamber allowing wood to burn only when air is introduced with specially designed panels to distribute preheated air, evenly within the firebox.

GASIFICATION MANIFOLD
A uniquely designed, high temperature poured refractory unit, that injects preheated air directly at the combustion zone.

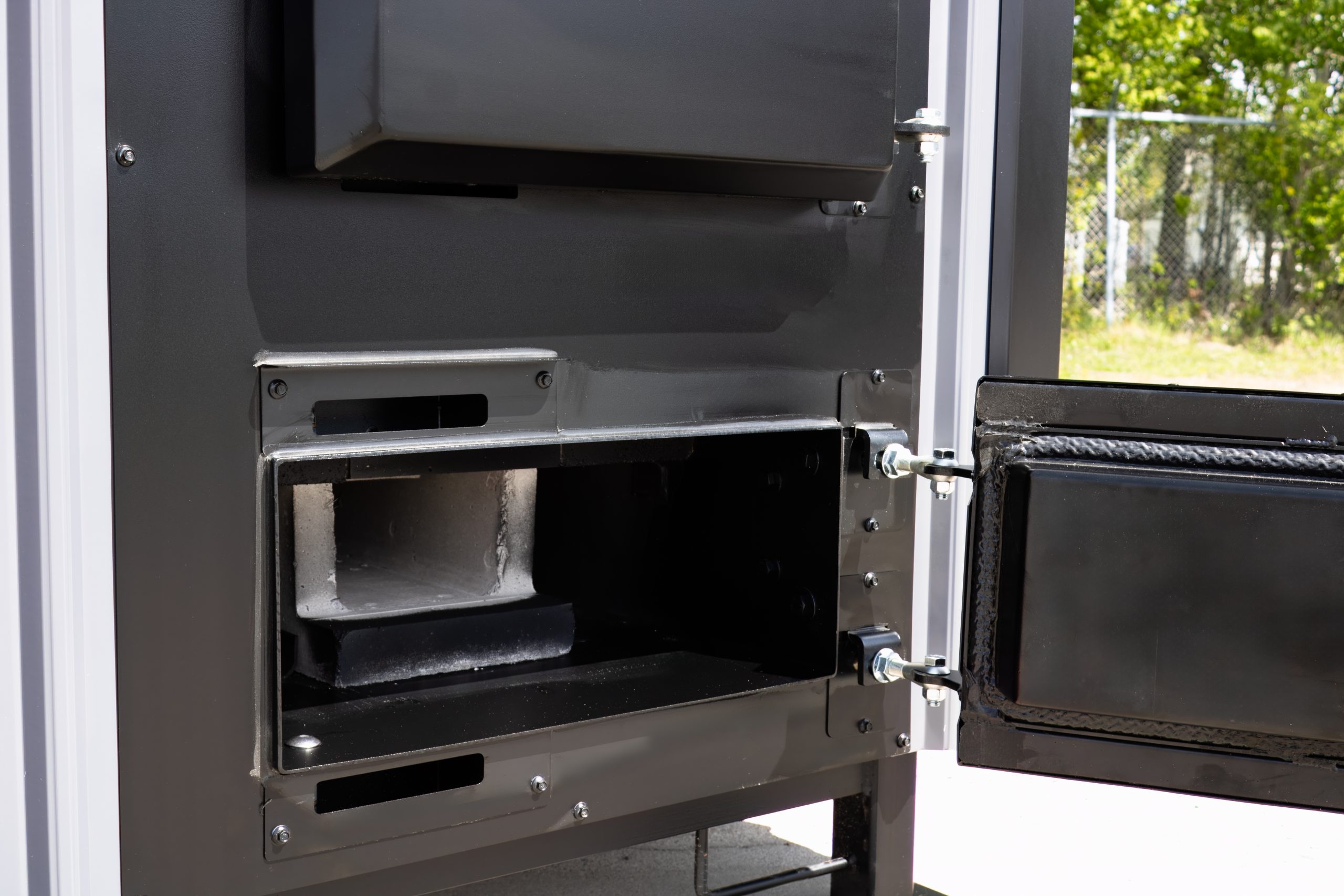

SECONDARY COMBUSTION CHAMBER
Exhaust gases from the firebox are injected with air to achieve temperatures up to 2,100°F and 99% fuel combustion.

HEAT EXCHANGER TUBES & HEAT EXCHANGER CLEANERS
Strategically placed in the water reservoir to transfer heat to the water, assisting in achieving high efficiency and low emissions. Each tube is equipped with a turbulator which removes any build up of fly ash.

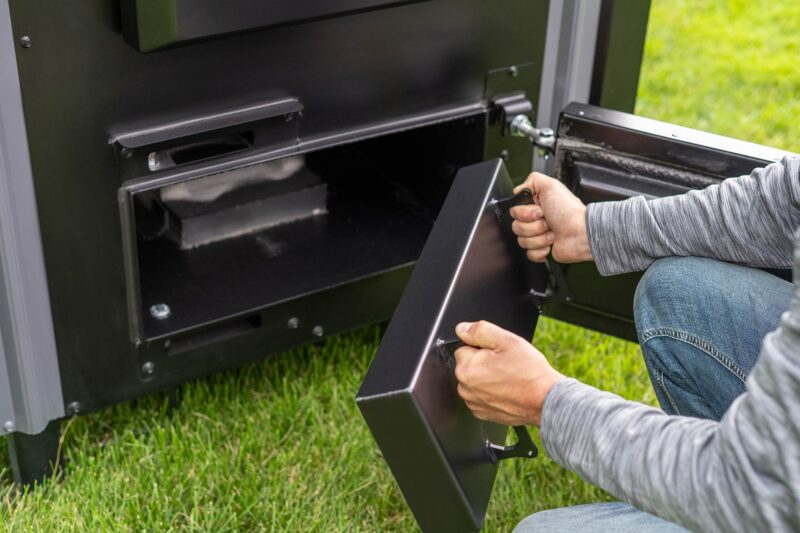

INSULATED HEAT EXCHANGER DOORS
Large insulated door for easy cleaning of heat transfer tubes.

STAINLESS STEEL FLUE
Compared to conventional flue exhausts which have temperatures between 800°F – 1000°F, the Pristine Series have a flue exhaust as low as 300°F.

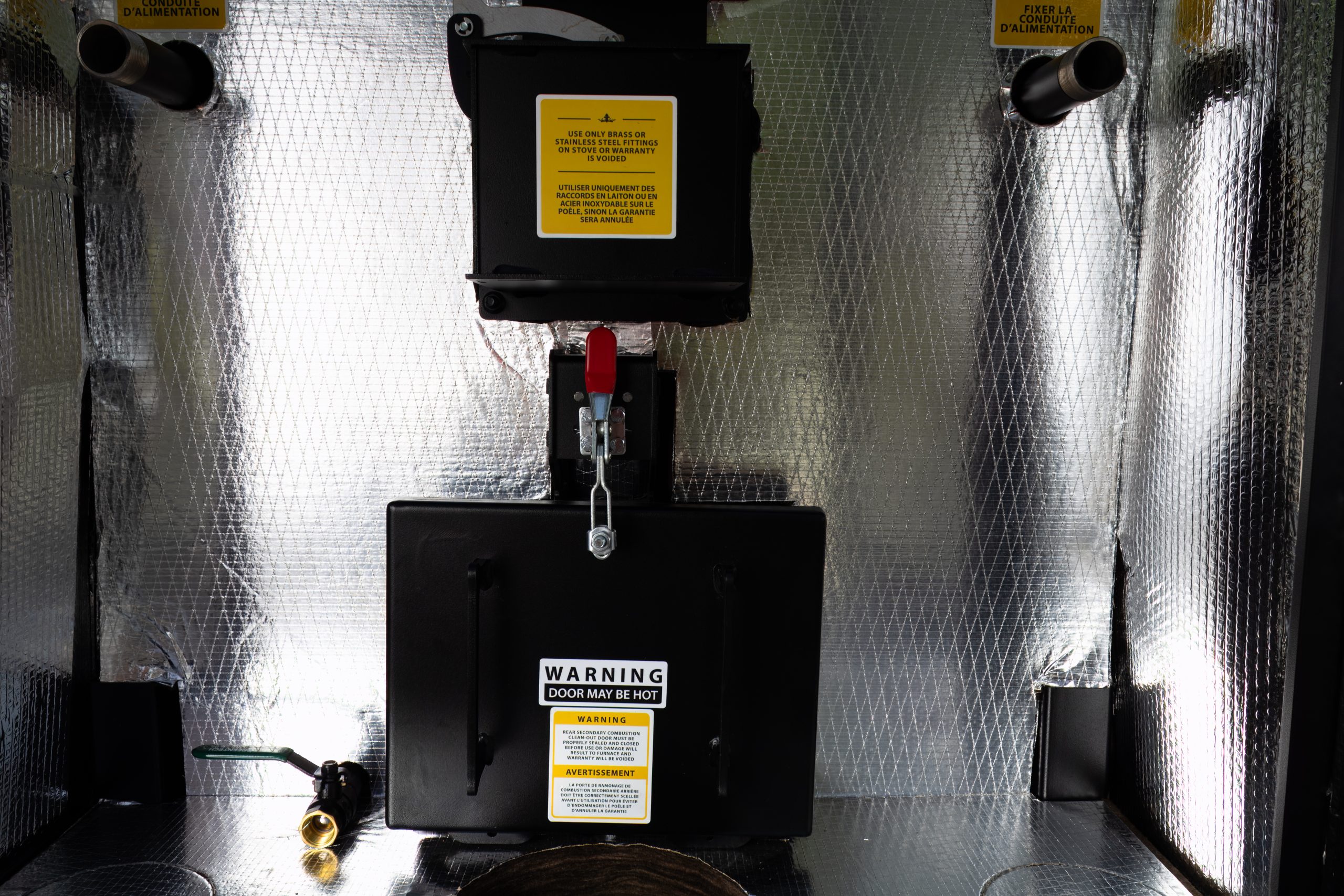

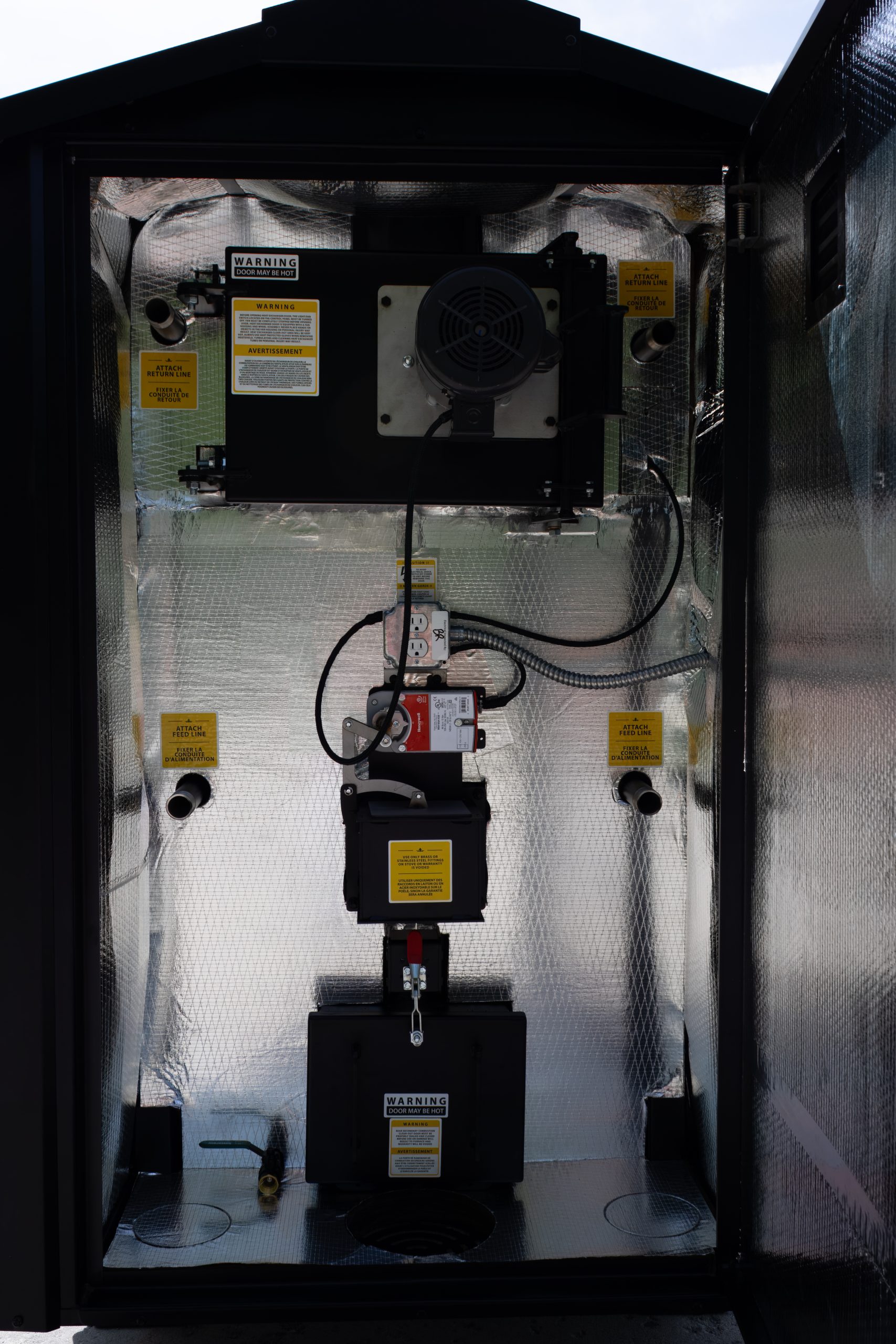

REAR ACCESS SWING DOOR
Fully removable swinging rear door for easy access and inspection.
